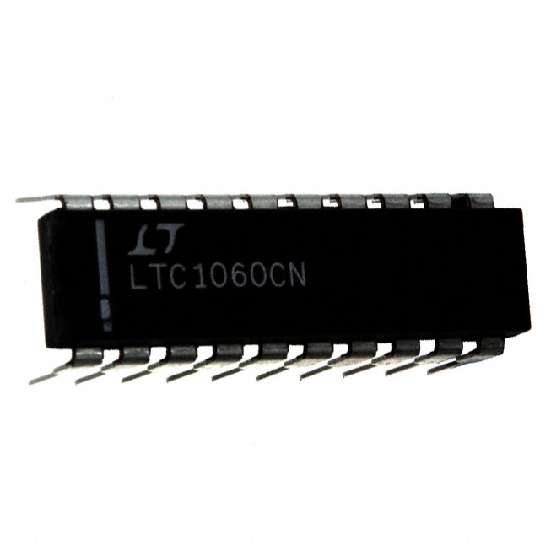

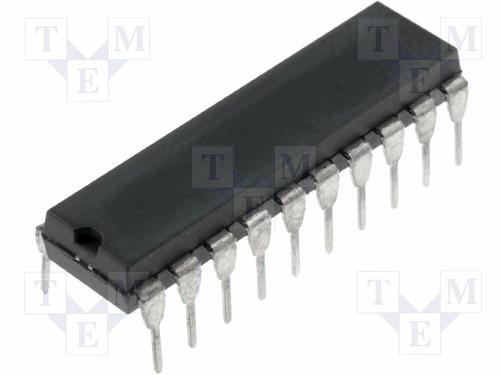

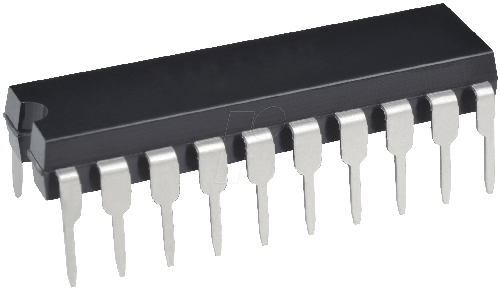

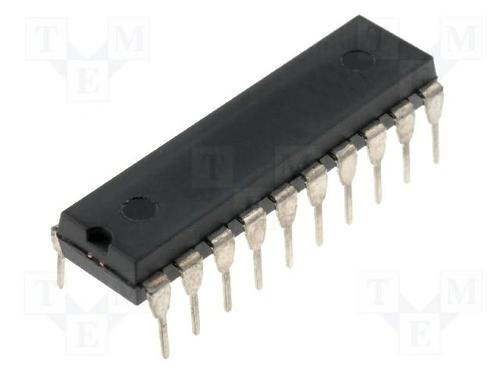

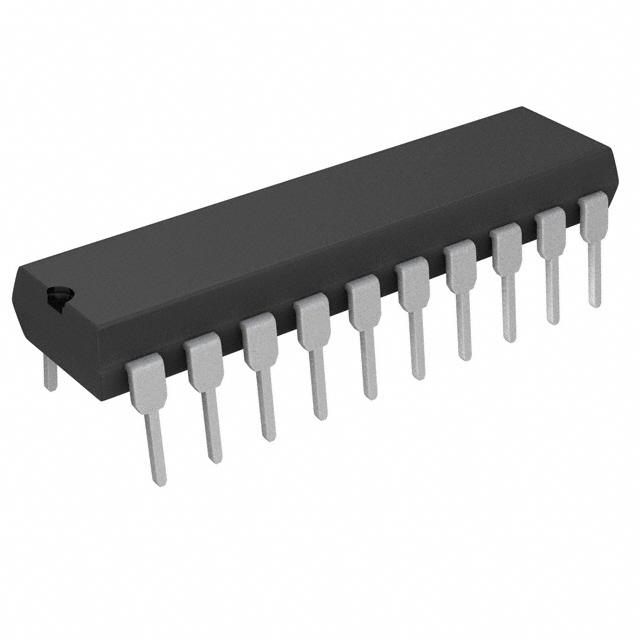

LTC1060CN#PBF

LINEAR TECHNOLOGY  LTC1060CN#PBF  开关电容滤波器, 开关电容, 4th, 2, 2.37 V, 8 V, DIP

The is an Universal Dual Filter Building Block consists of two high performance, switched capacitor filters. Each filter, together with 2 to 5 resistors can produce various 2nd order filter functions such as lowpass, bandpass, highpass notch and allpass. The center frequency of these functions can be tuned by an external clock or by an external clock and resistor ratio. Up to 4th order full biquadratic functions can be achieved by cascading the two filter blocks. Any of the classical filter configurations like Butterworth, Chebyshev, Bessel, Cauer can be formed. The LTC1060 operates with either a single or dual supply from ±2.37 to ±8V. When used with low supply i.e. single 5V supply, the filter typically consumes 12mW and can operate with center frequencies up to 10kHz. With ±5V supply, the frequency range extends to 30kHz and very high Q values can also be obtained.

.

Low power and 88dB dynamic range at ±2.5V supply

.

Center frequency Q product up to 1.6MHz

.

Guaranteed offset voltages

.

Guaranteed Q accuracy over temperature

.

Low temperature coefficient of Q and center frequency

.

Low crosstalk, 70dB

.

Clock inputs TTL and CMOS compatible
