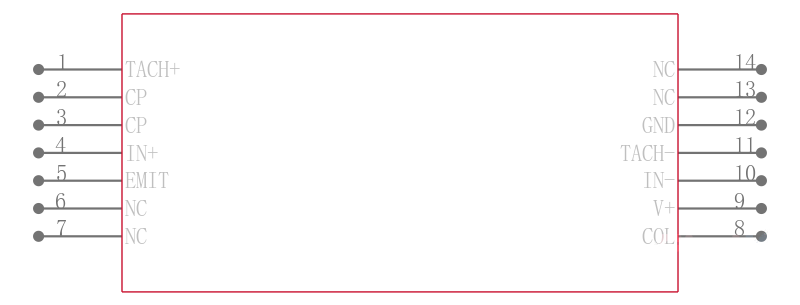

TEXAS INSTRUMENTS LM2907N 电压频率转换器, 10 kHz, 0.3 %, 0V 至 12V, DIP, 14 引脚
The is a Monolithic Frequency to Voltage Converter with a high gain op amp/comparator designed to operate a relay, lamp or other load when the input frequency reaches or exceeds a selected rate. The op amp/comparator is fully compatible with the tachometer and has a floating transistor as its output. This feature allows either a ground or supply referred load of up to 50mA. The collector may be taken above VCC up to a maximum VCE of 28V. The two basic configurations offered include an 8-pin device with an input and an internal connection between the tachometer output and the op amp non-inverting input. This version is well suited for single speed or frequency switching or fully buffered frequency to voltage conversion applications. The more versatile configurations provide differential tachometer input and uncommitted op amp inputs. With this version the tachometer input may be floated and the op amp becomes suitable for active filter conditioning of the tachometer output.
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2907N TI 德州仪器 | 当前型号 | 当前型号 |
LM2907N/NOPB 德州仪器 | 类似代替 | LM2907N和LM2907N/NOPB的区别 |
LM2907N-8/NOPB 德州仪器 | 功能相似 | LM2907N和LM2907N-8/NOPB的区别 |
NTE995 NTE Electronics | 功能相似 | LM2907N和NTE995的区别 |
