LT3758MPMSE#PBF

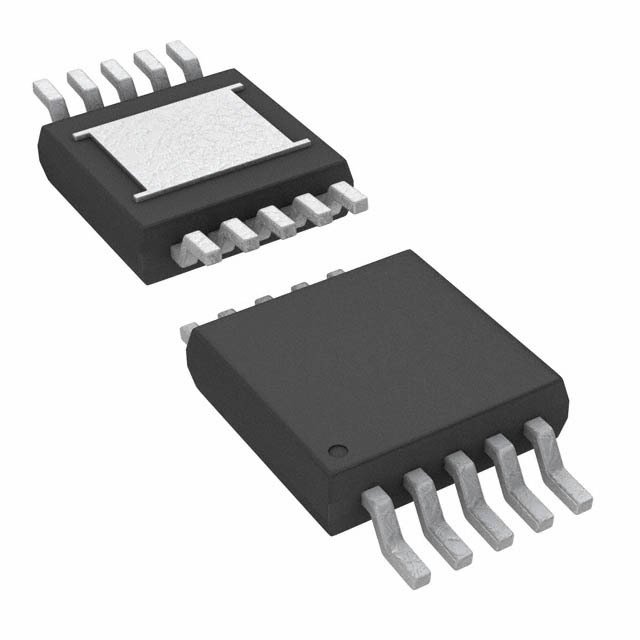

LINEAR TECHNOLOGY  LT3758MPMSE#PBF  升压控制器, 100V-5V电源, 1 MHz, MSOP-10

The is a current-mode DC/DC Controller capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. It drives a low side external N-channel power MOSFET from an internal regulated 7.2V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages. The operating frequency of the controller can be set with an external resistor over a 100kHz to 1MHz range and can be synchronized to an external clock using the SYNC pin. A minimum operating supply voltage of 5.5V and a low shutdown quiescent current of less than 1µA, makes it ideal. It features soft-start and frequency foldback functions to limit inductor current during start-up and output short-circuit.

.

Positive or negative output voltage programming with a single feedback pin

.

Current mode control provides excellent transient response

.

Synchronizable to an external clock

.

<1µA Low shutdown current

.

Internal 7.2V Low dropout voltage regulator

.

Programmable input undervoltage lockout with hysteresis

.

Programmable soft-start
