LQW2BAS15NJ00L

MURATA  LQW2BAS15NJ00L  表面贴装高频电感器, LQW2BA系列, 15 nH, ± 5%, 0805 [2012 公制], 3.2 GHz, 0.17 ohm

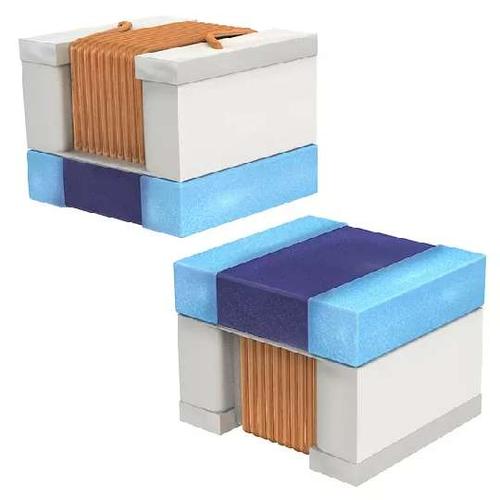

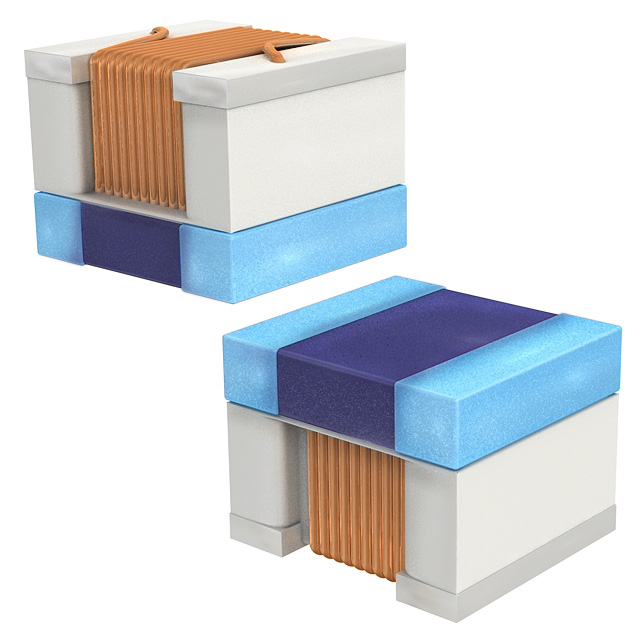

LQW21AS 系列 SMD 片状器

Murata LQW 系列线绕射频电感器包括一个高 Q 值，为过滤器通频带内部提供极佳衰减特性。 这些 LQW 电感器用于匹配天线应用，以便保持天线接收和传输灵敏度。 LQW 具有低直流电阻特性，可部署在具有高电流级别流的扼流电路中。

### 特点

提供两种类型的结构，用于不同的应用

高 Q 值

可支持大电流

低直流电阻抗

得捷:
FIXED IND 15NH 600MA 170MOHM SMD

立创商城:
15nH ±5% 170mΩ

欧时:
Murata LQW2BAS_00 系列 非磁核心芯材 15 nH 绕线贴片电感器 LQW2BAS15NJ00L, ±5%容差, 600mA Idc Q:50

贸泽:
Fixed Inductors 0805, 15nH , 600mA SRF 3200MHz, 5%

e络盟:
MURATA  LQW2BAS15NJ00L  表面贴装高频电感器, LQW2BA系列, 15 nH, ± 5%, 0805 [2012 公制], 3.2 GHz, 0.17 ohm

艾睿:

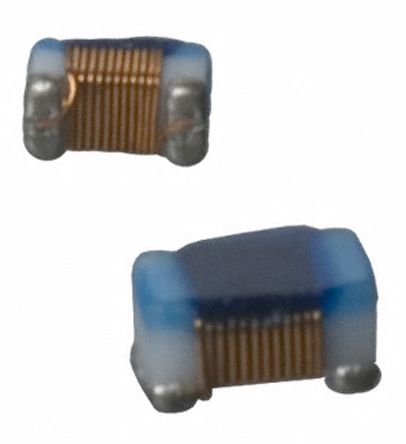

This rf chip LQW2BAS15NJ00L surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 5%. This product is 2.29 mm long, 1.52 mm tall and 1.73 mm deep. This device is made with wirewound technology. It has an inductance of 15n H. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 170m Ohm. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 3.2G Hz.

安富利:
Ind RF Chip Wirewound 15nH 5% 250MHz 50Q-Factor 600mA 0805 Embossed T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.015uH 5% 250MHz 50Q-Factor Non Magnetic 0.6A 0.17Ohm DCR 0805 T/R
