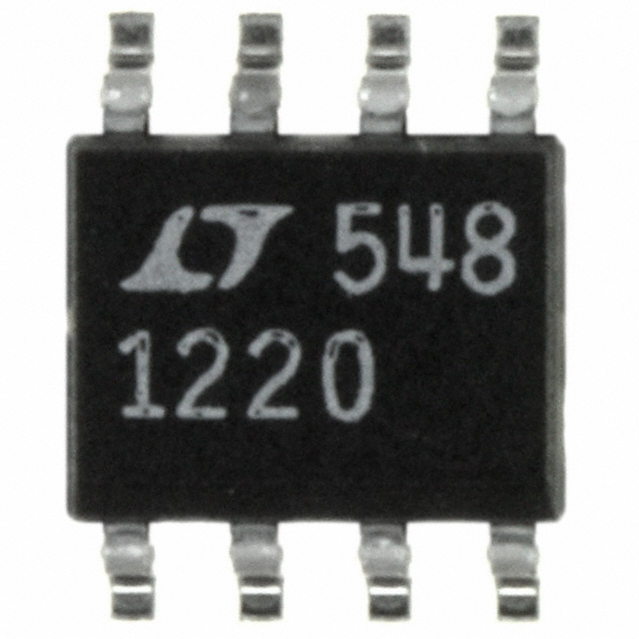

LT1220CS8

高速运算放大器 LT1220 - 45MHz, 250V/- s Operational Amplifier

DESCRIPTION

The LT®1220 is a high speed operational amplifier with superior DC performance. The LT1220 features reduced input offset voltage, lower input bias currents and higher DC gain than devices with comparable bandwidth and slew rate. The circuit is a single gain stage that includes proprietary DC gain enhancement circuitry to obtain precision with high speed. The high gain and fast settling time make the circuit an ideal choice for data acquisition systems. The circuit is also capable of driving large capacitive loads which makes it useful in buffer or cable driver applications.

FEATURES

■ Gain-Bandwidth: 45MHz

■ Unity-Gain Stable

■ Slew Rate: 250V/µs

■ C-LoadTM Op Amp Drives Capacitive Loads

■ Maximum Input Offset Voltage: 1mV

■ Maximum Input Bias Current: 300nA

■ Maximum Input Offset Current: 300nA

■ Minimum Output Swing Into 500Ω: ±12V

■ Minimum DC Gain: 20V/mV, RL = 500Ω

■ Settling Time to 0.1%: 75ns, 10V Step

■ Settling Time to 0.01%: 95ns, 10V Step

■ Differential Gain: 0.1%, AV = 2, RL = 150Ω

■ Differential Phase: 0.2°, AV = 2, RL = 150Ω

APPLICATIONS

■ Wideband Amplifiers

■ Buffers

■ Active Filters

■ Video and RF Amplification

■ Cable Drivers

■ 8-, 10-, 12-Bit Data Acquisition Systems
