低失真 1.2 GHz 差分驱动器 16-WQFN -40 to 85
The LMH6555 is an ultra high speed differential line driver with 53 dB SFDR at 750 MHz. The LMH6555 features a fixed gain of 13.7 dB. An input to the device allows the output common mode voltage to be set independent of the input common mode voltage in order to simplify the interface to high speed differential input ADCs. A unique architecture allows the device to operate as a fully differential driver or as a single-ended to differential converter.
The outstanding linearity and drive capability 100Ω differential load of this device are a perfect match for driving high speed analog-to-digital converters. When combined with the ADC081000/ ADC081500 single or dual ADC, the LMH6555 forms an excellent 8-bit data acquisition system with analog bandwidths exceeding 750 MHz.
The LMH6555 is offered in a space saving 16-pin WQFN package.
电路数 1
通道数 1
共模抑制比 40 dB
输入补偿漂移 100 µV/K
转换速率 3.00 kV/μs
增益频宽积 1.20 GHz
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 40 dB
共模抑制比Min 40 dB
电源电压 3V ~ 3.6V
电源电压Max 3.63 V
电源电压Min 2.97 V
安装方式 Surface Mount

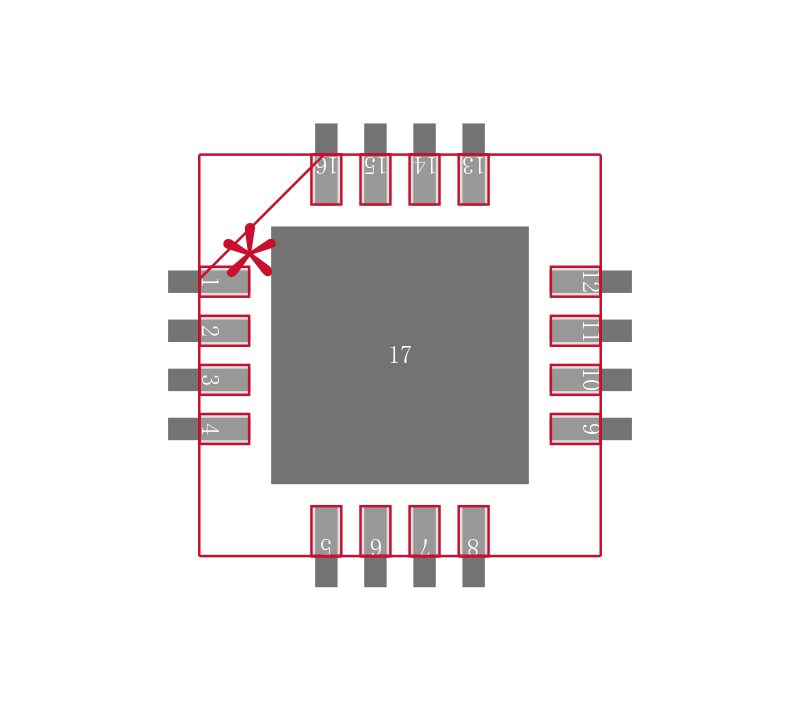

引脚数 16

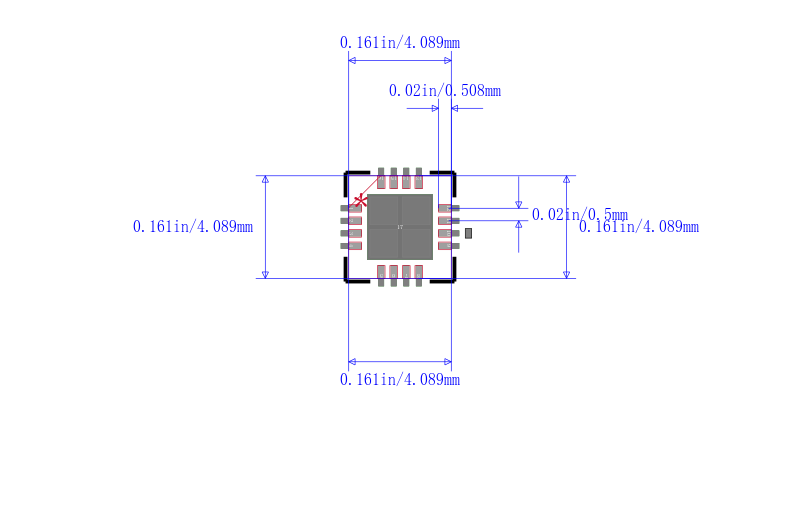

封装 WFQFN-16
封装 WFQFN-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMH6555SQE/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMH6555SQ/NOPB 德州仪器 | 完全替代 | LMH6555SQE/NOPB和LMH6555SQ/NOPB的区别 |
LMH6555SQX/NOPB 德州仪器 | 类似代替 | LMH6555SQE/NOPB和LMH6555SQX/NOPB的区别 |
