LTC1064-1CSW

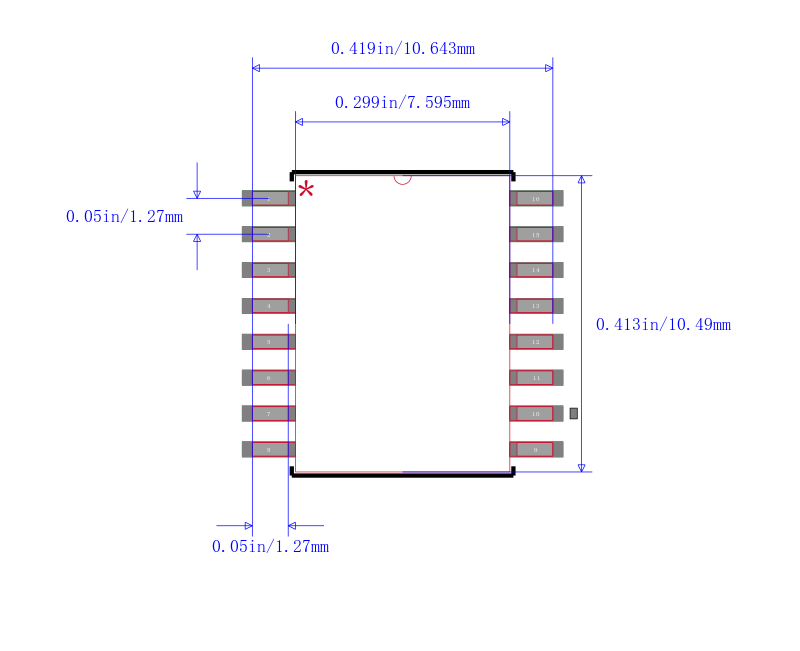

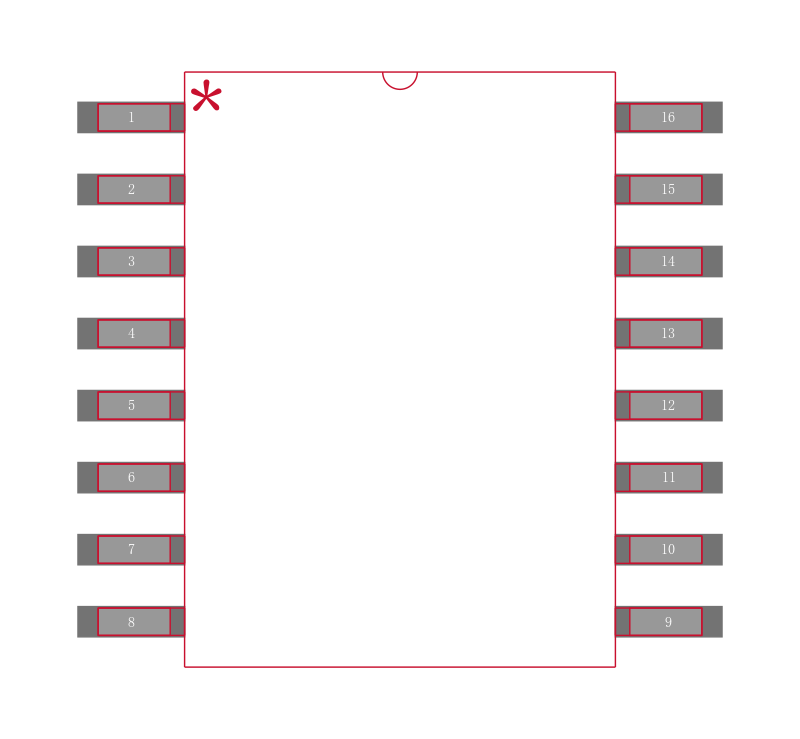

IC FILTR 8TH ORDR LOWPASS 16SOIC

DESCRIPTION

The LTC®1064-1 is an 8th order, clock sweepable elliptic Cauer lowpass switched capacitor filter. The passband ripple is typically ±0.15dB, and the stopband attenuationat 1.5 times the cutoff frequency is 68dB or more. An external TTL or CMOS clock programs the value of the filter’s cutoff frequency. The clock to cutoff frequency ratio is 100:1.

FEATURES

■ 8th Order Filter in a 14-Pin Package

■ No External Components

■ 100:1 Clock to Center Ratio

■ 150µVRMS Total Wideband Noise

■ 0.03% THD or Better

■ 50kHz Maximum Corner Frequency

■ Operates from ±2.37V to ±8V Power Supplies

■ Passband Ripple Guaranteed Over Full Military Temperature Range

APPLICATIONS

■ Antialiasing Filters

■ Telecom PCM Filters
