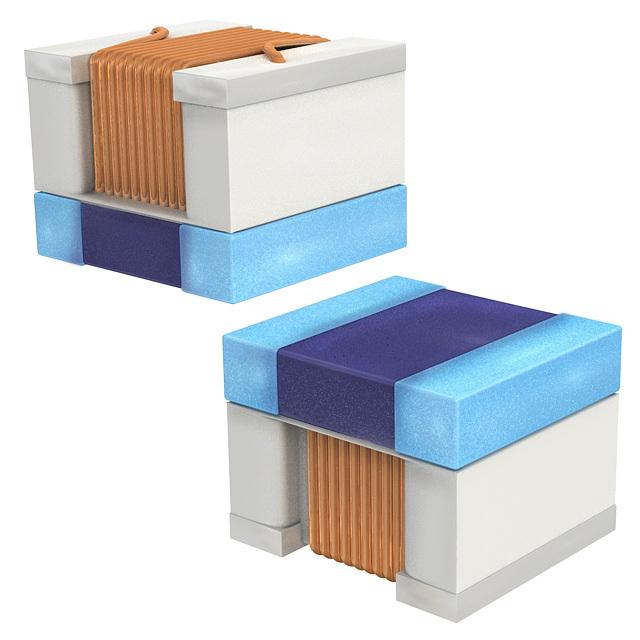

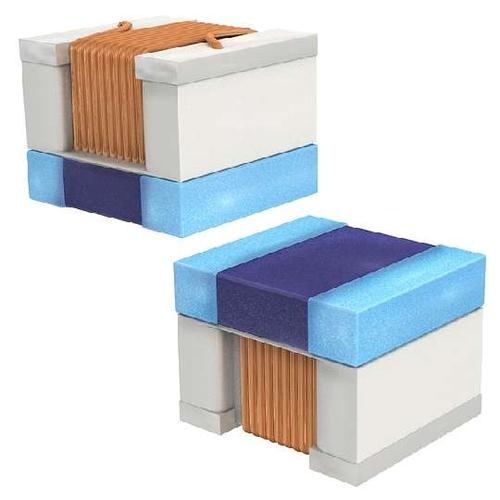

MURATA LQW2UASR27J00L 表面贴装高频电感器, LQW2UA系列, 270 nH, ± 5%, 1008 [2520 公制], 600 MHz, 0.91 ohm
270 nH 无屏蔽 绕线 器 500 mA 910 毫欧最大 1008(2520 公制)
立创商城:
270nH ±5% 910mΩ
得捷:
FIXED IND 270NH 500MA 910MOHM SM
贸泽:
Fixed Inductors 270nH 500mA 600MHz
e络盟:
MURATA LQW2UASR27J00L 表面贴装高频电感器, LQW2UA系列, 270 nH, ± 5%, 1008 [2520 公制], 600 MHz, 0.91 ohm
艾睿:
Make any circuit look clean and compact using this rf chip LQW2UASR27J00L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 910m Ohm. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 600M Hz. It has an inductance of 270n H. This device utilizes wirewound technology. It has a tolerance of 5%. This product is 2.92 mm long, 2.03 mm tall and 2.65 mm deep.
安富利:
Ind RF Chip Wirewound 270nH 5% 25MHz 45Q-Factor 500mA 1008 Embossed T/R
Chip1Stop:
Inductor RF Chip Unshielded Wirewound 270nH 5% 25MHz 45Q-Factor Ceramic 500mA 910mOhm DCR 1008 T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.27uH 5% 25MHz 45Q-Factor Non Magnetic 0.5A 0.91Ohm DCR 1008 T/R
额定电流 500 mA
容差 ±5 %
电感 270 nH
自谐频率 600 MHz
Q值 45.0
产品系列 LQW
电感公差 ±5 %
测试频率 25 MHz
电阻DC) ≤910 mΩ
额定电流DC 500 mA
工作温度Max 125 ℃
工作温度Min 55 ℃
电阻DC Max 0.91 Ω
安装方式 Surface Mount
封装 1008
长度 2.92 mm
宽度 2.65 mm
高度 2.03 mm
封装 1008
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 消费电子产品, 工业, Industrial, Power Management, Portable Devices, Consumer Electronics, 便携式器材, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LQW2UASR27J00L muRata 村田 | 当前型号 | 当前型号 |
CW252016-R27J 伯恩斯 | 功能相似 | LQW2UASR27J00L和CW252016-R27J的区别 |
1008CS-271XJLB 线艺 | 功能相似 | LQW2UASR27J00L和1008CS-271XJLB的区别 |
