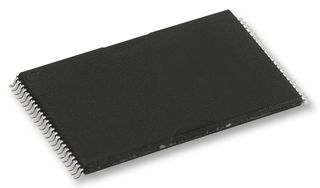

LYONTEK LY61L102416ALL-10I 芯片, 存储器, SRAM, 16MB, 1024K X 16位, TSOP-I-48
The is a 16MB high speed CMOS Static Random Access Memory SRAM organized as 1024K words by 16-bit. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature. The LY61L102416A operates with power supply either 1.8 or 3.3V and all inputs and outputs are fully TTL compatible.
- .
- Fast access time - 10ns
- .
- Fully static operation
- .
- Tri-state output
- .
- Data retention voltage - 1.5V minimum
电源电压DC 2.70V min
针脚数 48
存取时间 10 ns
内存容量 2000000 B
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
引脚数 48
封装 TSOP
封装 TSOP
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Consumer Electronics, Industrial, 通信与网络, 消费电子产品, Communications & Networking, 工业, 计算机和计算机周边
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LY61L102416ALL-10I Lyontek | 当前型号 | 当前型号 |
IS61WV102416BLL-10TLI Integrated Silicon SolutionISSI | 功能相似 | LY61L102416ALL-10I和IS61WV102416BLL-10TLI的区别 |
