LTC3676IUJ#PBF

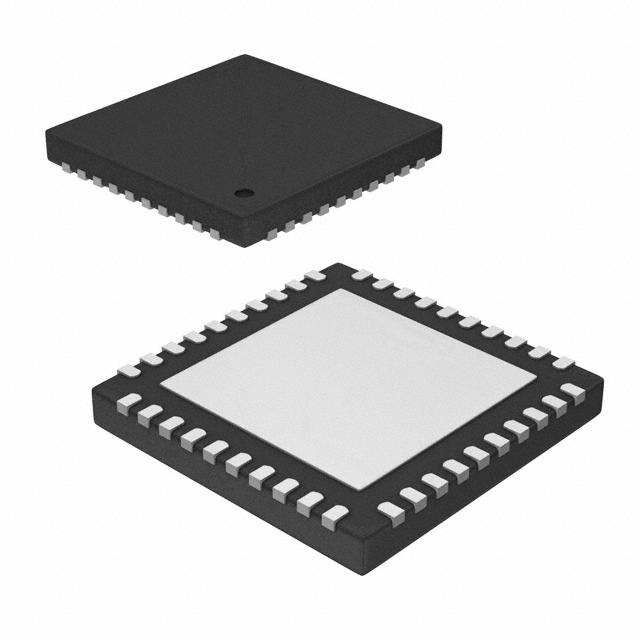

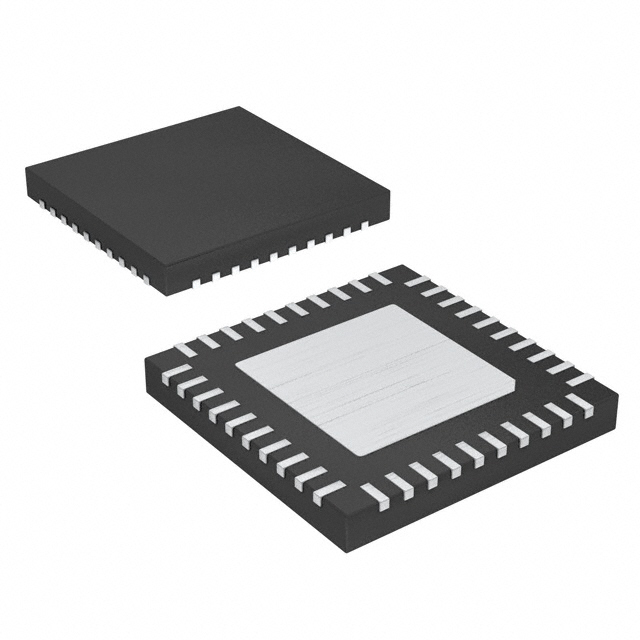

LINEAR TECHNOLOGY  LTC3676IUJ#PBF  芯片, 电源管理方案, QFN-40

The is a complete Power Management Solution for advanced portable application processor-based systems. The device contains four synchronous step-down DC/DC converters for core, memory, I/O, system on-chip SoC rails and three 300mA LDO regulators for low noise analog supplies. The LTC3676-1 has a ±1.5A buck regulator configured to support DDR termination plus a VTTR reference output. An I2C serial port is used to control regulator enables, power-down sequencing, output voltage levels, dynamic voltage scaling, operating modes and status reporting. Regulator start-up is sequenced by connecting outputs to enable pins in the desired order or via the I2C port. System power-on, power-off and reset functions are controlled by pushbutton interface, pin inputs or I2C. The LTC3676 supports i.MX, PXA and OMAP processors with eight independent rails at appropriate power levels.

.

Quad I2C adjustable high efficiency step down

.

DDR power solution with VTT and VTTR reference

.

Pushbutton ON/OFF control with system reset

.

Independent enable pin-strap or I2C sequencing

.

Programmable autonomous power-down control

.

Dynamic voltage scaling

.

Power good and reset functions

.

Selectable 2.25 or 1.12MHz switching frequency

.

Always alive 25mA LDO regulator

.

12µA Standby current
