L17DAFRA15S

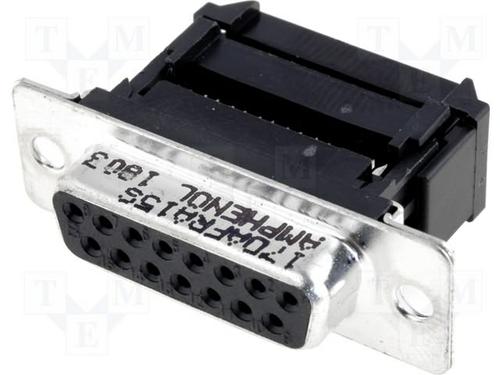

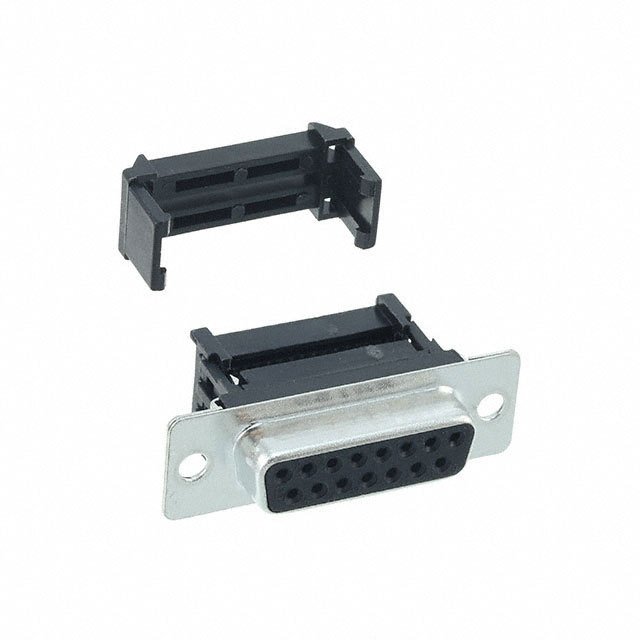

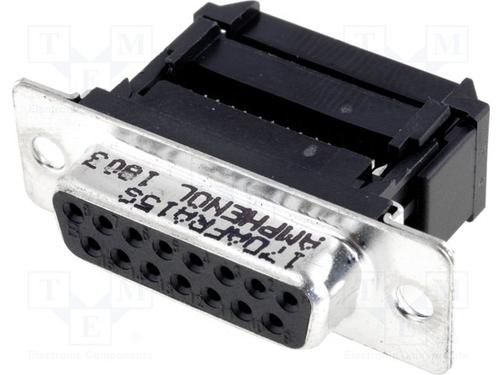

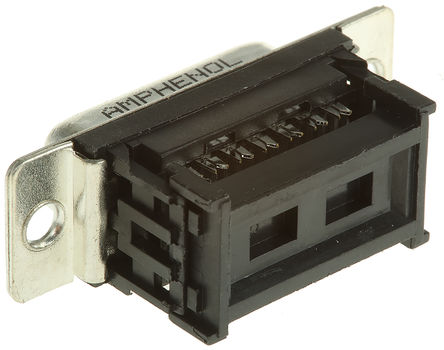

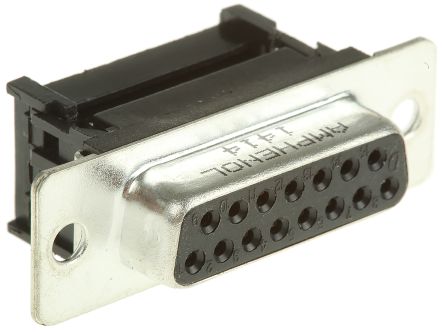

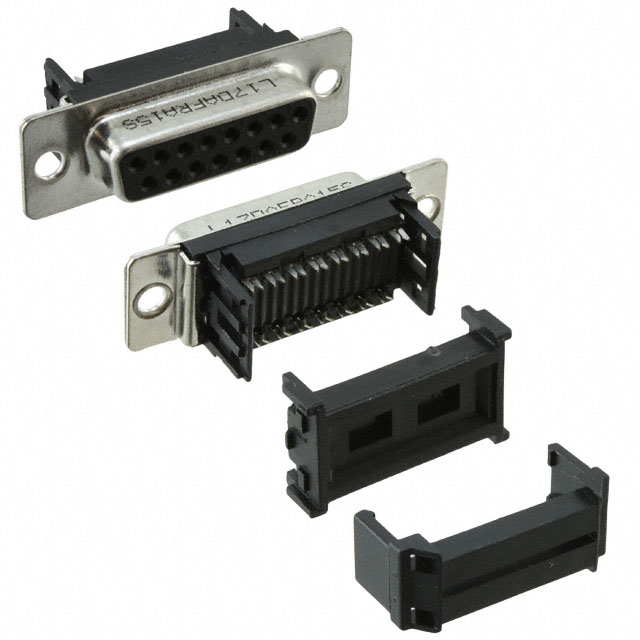

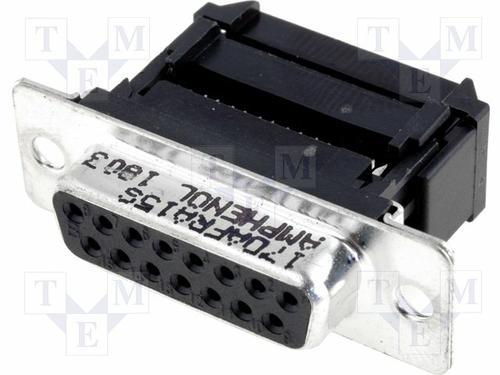

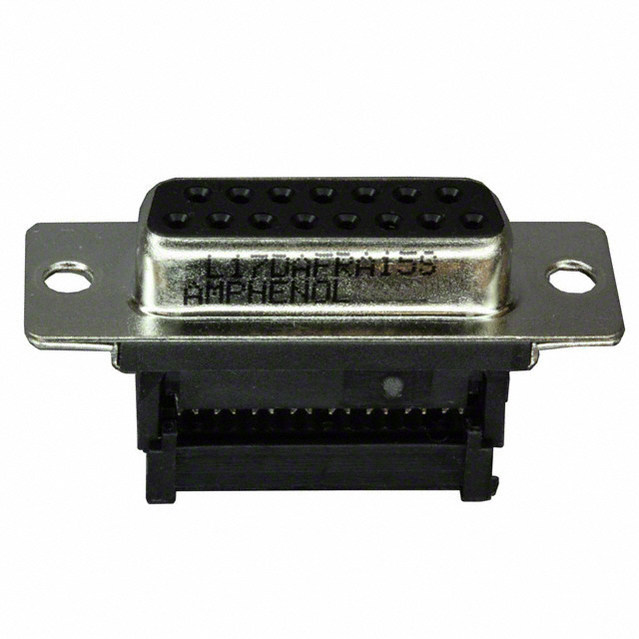

AMPHENOL  L17DAFRA15S  连接器, D sub, 堆叠式, 17D系列, DA, 插座, 15 触点, 钢主体, IDC / IDT

DFR 系列扁平带状 IDC D-Sub 插座

DFR 系列 IDC D-Sub 插座连接器，适合与标准 1.27mm 扁平电缆一起使用。 这些 DFR IDC 带状电缆 D-sub 插座连接器，具有镀锡钢外壳、玻璃填充热塑性 UL 94V-0 绝缘体、镀金 IDC 插座触点和 M3 螺钉锁，用于前面安装。 这些母 DFR 扁平带状电缆 D-sub 连接器的典型应用包括工业、电信和任何工业标准输入/输出应用。 有关配接 DFR IDC D-Sub 插头连接器，请参见库存号 691-8998 典型。

欧时:
Amphenol DFR 系列 2.74mm 节距 15 路 IDC D-Sub 带状电缆连接器 插座 L17DAFRA15S, 钢外壳

e络盟:
AMPHENOL COMMERCIAL PRODUCTS  L17DAFRA15S  连接器, 标准D-SUB, 17D 系列, DA

艾睿:
This L17DAFRA15S DVI connector from Amphenol is ideal for all your serial communication needs. This socket type connector&s;s 15 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. Its pitch is 2.74 mm. This 2-row connector has a single port. L17DAFRA15S is housed in thermoplastic. This device has a maximum current rating of 5 A. This product is 39.24 mm long, 12.55 mm tall and 17.48 mm deep. This DVI connector has an operating temperature of -40 to 125 °C. Its 15 terminals use the idt termination method.

安富利:
Conn D-Subminiature SKT 15 POS 2.74mm IDT RA Cable Mount 15 Terminal 1 Port

富昌:
15 位置 2 排 母头 D-Sub 连接器 插座 至 IDC 带状电缆

Chip1Stop:
Conn D-Subminiature SKT 15 POS 2.74mm IDT RA Cable Mount 15 Terminal 1 Port

TME:
Plug; D-Sub; DFR; PIN:15; female; IDC; for ribbon cable; gold flash

Verical:
Conn D-Subminiature SKT 15 POS 2.74mm IDT RA Cable Mount 15 Terminal 1 Port

Newark:
# AMPHENOL COMMERCIAL PRODUCTS  L17DAFRA15S  Standard D Sub Connector, 15 Contacts, Receptacle, DA, DFR Series, Steel Body, IDC / IDT

MASTER:
Conn D-Subminiature SKT 15 POS 2.74mm IDT RA Cable Mount 15 Terminal 1 Port

Electro Sonic:
Conn D-Subminiature SKT 15 POS 2.74mm IDT RA Cable Mount 15 Terminal 1 Port
