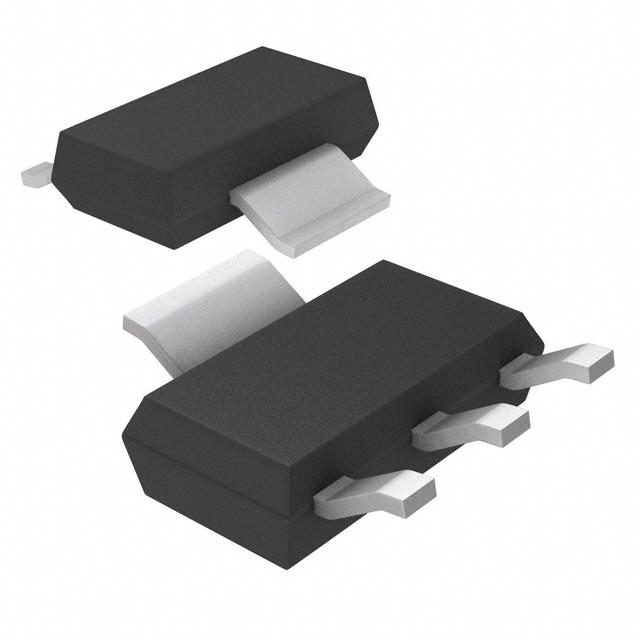

LDO Regulator Pos 3.3V 0.7A 4Pin3+Tab SOT-223
If you need to maintain a steady voltage on your circuit, then this LDO linear regulator from is perfect for you! Its typical dropout voltage at current is 0.13@10mA|0.25@100mA|0.37@500mA|0.45@700mA V. This voltage regulation device"s single output can produce a current up to 0.7 A. Use this part at voltages between 4.15 V and 30 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Users like the load regulation of 20mV and line regulation of 10mV. Its polarity is positive. This voltage regulation device has an operating temperature range of -55 °C to 125 °C. The maximum dropout voltage is 0.2@10mA|0.35@100mA|0.45@500mA|0.55@700mA V.
输出接口数 1
输出电压 3.3 V
输出电流 700 mA
供电电流 70µA ~ 90mA
跌落电压 0.37V @500mA,0.13V @10mA,0.25V @100mA,0.45V @700mA
输入电压Max 30 V
输入电压Min 4.15 V
输出电压Min 3.3 V
输出电流Max 0.7 a
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 4
封装 TO-261-4
封装 TO-261-4
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1129MPST-3.3#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1129IST-3.3 凌力尔特 | 完全替代 | LT1129MPST-3.3#PBF和LT1129IST-3.3的区别 |
LT1129MPST-3.3#TRPBF 凌力尔特 | 完全替代 | LT1129MPST-3.3#PBF和LT1129MPST-3.3#TRPBF的区别 |
LT1129CST-3.3 凌力尔特 | 类似代替 | LT1129MPST-3.3#PBF和LT1129CST-3.3的区别 |
