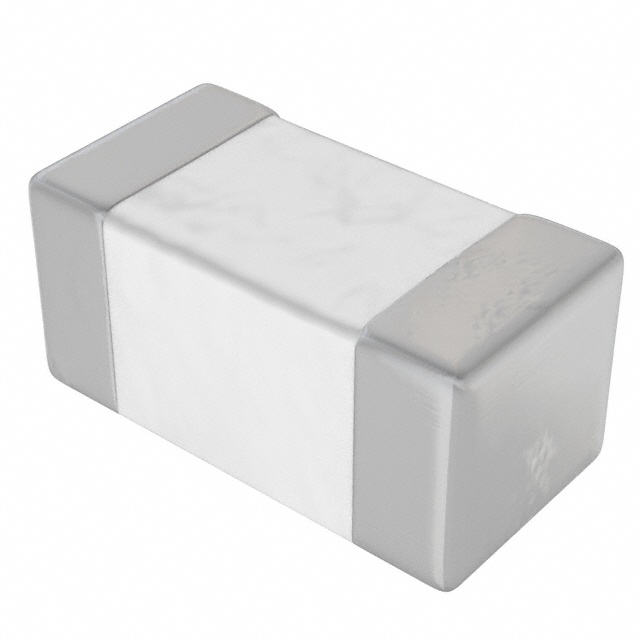

JOHANSON TECHNOLOGY L-14C10NJV4T 表面贴装高频电感器, L-14C系列, 10 nH, ± 5%, 0603 [1608 公制], 0.35 ohm
The L-14C series high-frequency multi-layer RF Ceramic Chip Inductor features a monolithic body made of low loss ceramic and high conductivity metal electrodes to achieve optimal high frequency performance. These RF chip inductors are compact in size and feature tin-plated nickel barrier terminations. This L-14C series inductor is ideal for small size/high volume wireless applications.
额定电流 300 mA
容差 ±5 %
电感 10 nH
自谐频率 3.7 GHz
Q值 8.0
电感公差 ±5 %
测试频率 100 MHz
电阻DC) ≤350 mΩ
额定电流DC 300 mA
工作温度Max 100 ℃
工作温度Min -55 ℃
电阻DC Max 0.35 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.95 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Communications & Networking, Wireless, 工业, Industrial, 便携式器材, 通信与网络, RF Communications, 射频通信, Consumer Electronics, Portable Devices, 无线, 电源管理, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
