LINEAR TECHNOLOGY LTC3729EUH#PBF DC-DC Controller, High Efficiency, Poly Phase, 4V to 36V, 1 Output, Synchronous Buck, 590kHz, QFN-32
The is a multiple phase synchronous step-down current-mode Switching Regulator Controller that drives N-channel external power MOSFET stages in a phase-lockable fixed frequency architecture. The PolyPhase controller drives its two output stages out of phase at frequencies up to 550kHz to minimize the RMS ripple currents in both input and output capacitors. The output clock signal allows expansion for up to 12 evenly phased controllers for systems requiring 15 to 200A of output current. The multiple phase technique effectively multiplies the fundamental frequency by the number of channels used, improving transient response while operating each channel at an optimum frequency for efficiency. Thermal design is also simplified. An internal differential amplifier provides true remote sensing of the regulated supply"s positive and negative output terminals as required for high current application. RUN/SS pin provides both soft-start and optional timed, short-circuit shutdown.
电源电压DC 4.00V min
输出接口数 1
输出电压 0.8V ~ 5V
输出电流 240 A
开关频率 590 kHz
占空比 99.5 %
输入电压Max 36 V
输入电压Min 4 V
最大占空比 0.995
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4V ~ 36V
电源电压Max 36 V
电源电压Min 4 V
输入电压 4.36 V
安装方式 Surface Mount
引脚数 32

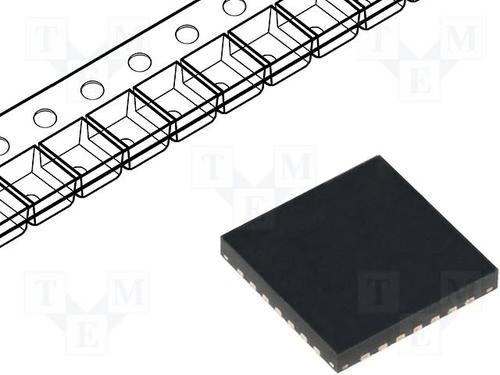

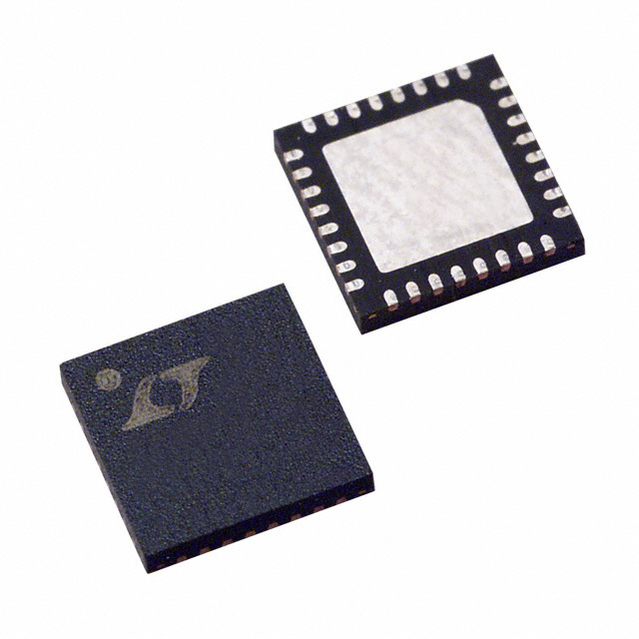

封装 QFN-32
高度 0.75 mm
封装 QFN-32
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3729EUH#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3729EUH 凌力尔特 | 类似代替 | LTC3729EUH#PBF和LTC3729EUH的区别 |
LTC3729EUH#TRPBF 凌力尔特 | 类似代替 | LTC3729EUH#PBF和LTC3729EUH#TRPBF的区别 |
LTC3729EUH#TR 凌力尔特 | 功能相似 | LTC3729EUH#PBF和LTC3729EUH#TR的区别 |
