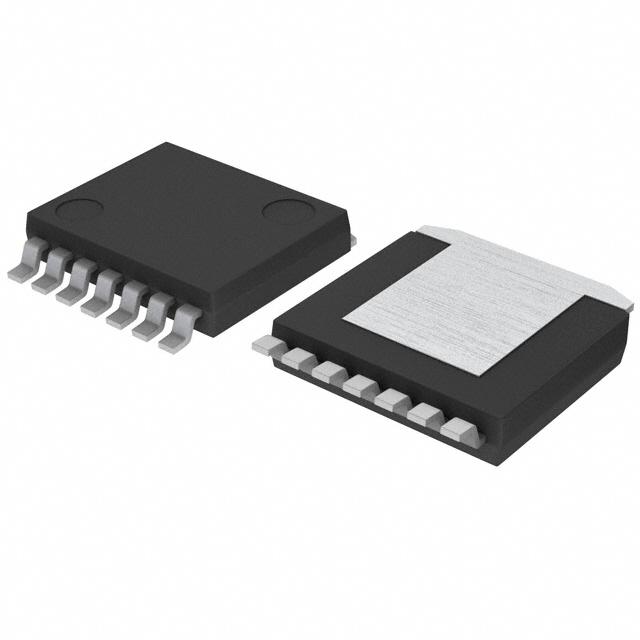

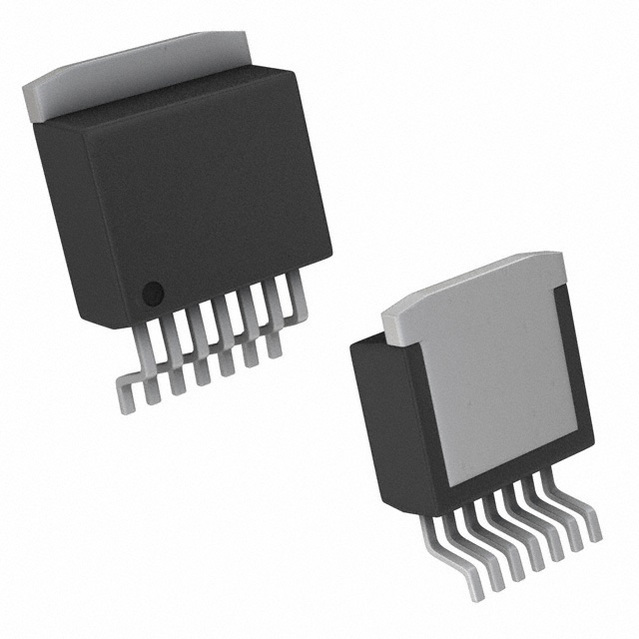

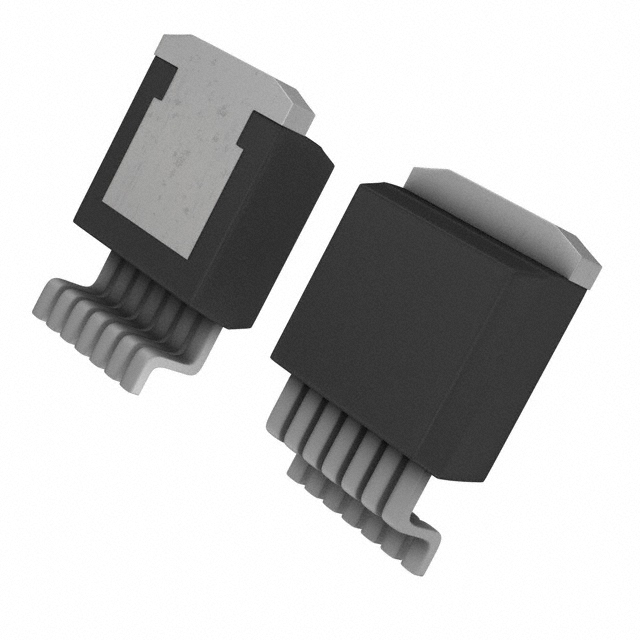

LINEAR TECHNOLOGY LT1370HVCR#PBF DC-DC Switching Regulator, Adjustable, 2.4V-30Vin, 42V/6A out, 580kHz, TO-252-7
Adjust the voltage level of your devices with this non-inverting and inverting|step up|step down DC to DC converter from . This converter"s single output can produce a current up to 6 A. By only needing an input voltage of 2.4 V with a maximum of 30 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 1.245 to 35 V, this is power management at its best. Users like the line regulation of 0.03%/V. You can operate this at a switching frequency of 550 kHz. This converter has an operating temperature range of 0 °C to 70 °C.
电源电压DC 30.0V max
输出接口数 1
输出电压 1.245V ~ 35V
输出电流 6 A
开关频率 500 kHz
拓扑结构 Buck, Boost, Flyback, Forward
输入电压Max 30 V
输入电压Min 2.4 V
输出电压Max 42 V
输出电压Min 1.245 V
输出电流Max 6 A
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 2.7V ~ 25V
安装方式 Surface Mount
引脚数 7
封装 TO-263-8
封装 TO-263-8
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1370HVCR#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1370HVCR#TRPBF 凌力尔特 | 类似代替 | LT1370HVCR#PBF和LT1370HVCR#TRPBF的区别 |
