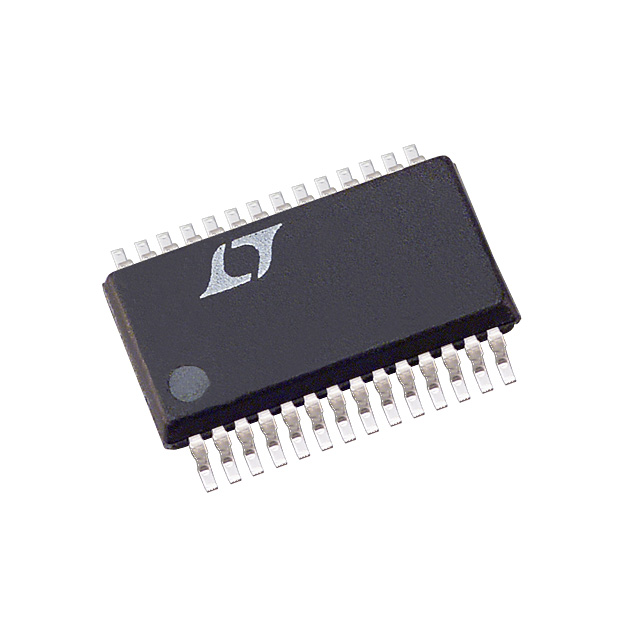

LTC1629IG

DC-DC Cntrlr Single-OUT Step Down 1300kHz Automotive 28Pin SSOP

DESCRIPTION

The LTC®1629/LTC1629-PG are multiple phase, dual, synchronous step-down current mode switching regula tor controllers that drive N-channel external power MOSFET stages in a phase-lockable fixed frequency architecture. The PolyPhaseTM controller drives its two output stages out of phase at frequencies up to 300kHz to minimize the RMS ripple currents in both input and output capacitors. The output clock signal allows expansion for up to 12 evenly phased controllers for systems requiring 15A to 200A of output current. The multiple phase technique effectively multiplies the fundamental frequency by the number of channels used, improving transient response while operating each channel at an optimum frequency for efficiency. Thermal design is also simplified.

FEATURES

■ Dual Controller Operates from One to Twelve Phases

■ Reduces Required Input Capacitance and Power Supply Induced Noise

■ Current Mode Control Ensures Current Sharing

■ Phase-Lockable Fixed Frequency: 150kHz to 300kHz

■ 1.8MHz Effective Switching Frequency

■ True Remote Sensing Differential Amplifier

■ OPTI-LOOPTM Compensation Reduces COUT

■ ±1% Output Voltage Accuracy

■ Power Good Output Voltage Monitor LTC1629-PG

■ Wide VIN Range: 4V to 36V Operation

■ Very Low Dropout Operation: 99% Duty Cycle

■ Adjustable Soft-Start Current Ramping

■ Internal Current Foldback Plus Shutdown Timer

■ Overvoltage Soft-Latch Eliminates Nuisance Trips

■ Micropower Shutdown

■ Available in 28-Lead SSOP Package

APPLICATIONS

■ Desktop Computers

■ Internet Servers

■ Large Memory Arrays

■ DC Power Distribution Systems
