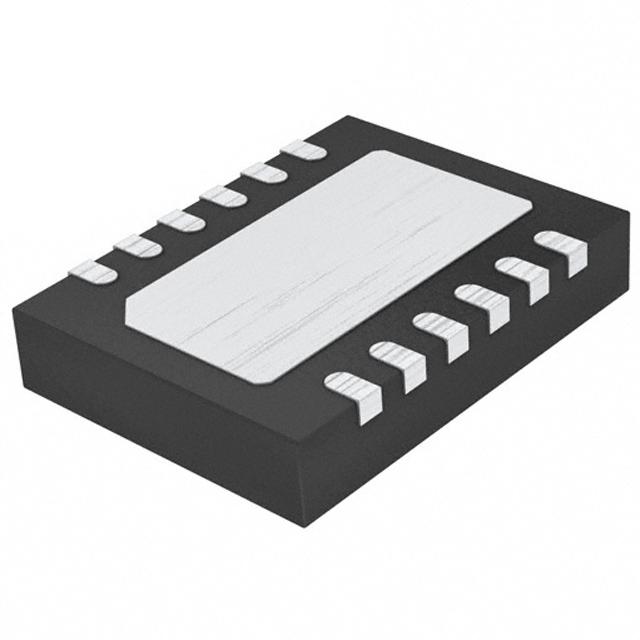

LINEAR TECHNOLOGY LTC3864MPDE#PBF 直流/直流控制器, 高压, 3.5V至60V, 1路输出, 降压, 850kHz, DFN-12
Use the synchronous step down DC voltage controller from to step up and down your DC voltage. With an output that has a voltage of 0.8 to 60 V, this is power management at its best. This DC voltage controller has single output. Its output produces a current of 25 A. This DC voltage controller has an input voltage of 3.5 to 60 V. This part offers a switching frequency of 50 to 850 kHz in order to work properly. This DC voltage controller has an operating temperature range of -55 °C to 150 °C.
电源电压DC 3.50V min
输出接口数 1
输出电压 0.8V ~ 60V
输出电流 25 A
针脚数 12
开关频率 850 kHz
占空比 100 %
输入电压Max 60 V
输入电压Min 3.5 V
最大占空比 1
工作温度Max 150 ℃
工作温度Min -55 ℃
电源电压Max 60 V
电源电压Min 3.5 V
输入电压 3.5V ~ 60V
安装方式 Surface Mount
引脚数 12
封装 DFN-12
封装 DFN-12
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3864MPDE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3864EDE#PBF 凌力尔特 | 完全替代 | LTC3864MPDE#PBF和LTC3864EDE#PBF的区别 |
LTC3864HDE#PBF 凌力尔特 | 完全替代 | LTC3864MPDE#PBF和LTC3864HDE#PBF的区别 |
LTC3864IDE#PBF 凌力尔特 | 完全替代 | LTC3864MPDE#PBF和LTC3864IDE#PBF的区别 |
