开关控制器 Wide VIN Range Fault Protected 50mA Step-Down Charge Pump
Do you have to convert a direct current from one voltage level to another? The charge pump voltage doubler gives you the ability to do just that. Its output produces a current of 50Max mA. With an output that has a voltage of 2.4 to 12.5 V, this is power management at its best. This inverting charge pump has an operating temperature range of -55 °C to 150 °C. This device has a minimum operating supply voltage of 4 V and a maximum of 48 V.
输出接口数 1
输出电压 2.4V ~ 12.5V
输出电流 50 mA
开关频率 500 kHz
输入电压Max 48 V
输入电压Min 4 V
输出电压Max 12.5 V
输出电压Min 2.4 V
工作温度Max 150 ℃
工作温度Min -55 ℃
输入电压 4V ~ 48V
安装方式 Surface Mount
引脚数 10

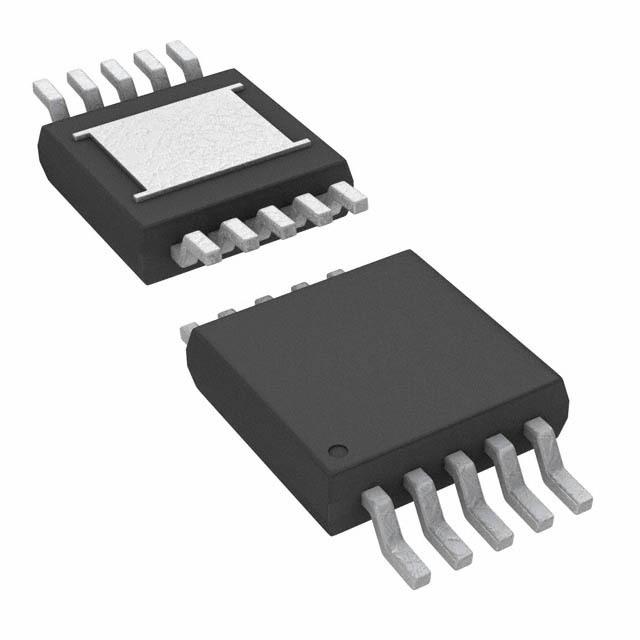

封装 MSOP-10
封装 MSOP-10
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3255MPMSE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3255MPMSE#TRPBF 凌力尔特 | 完全替代 | LTC3255MPMSE#PBF和LTC3255MPMSE#TRPBF的区别 |
