DC-DC Cntrlr Dual-OUT Step Down 138kHz Automotive 28Pin SSOP Tube
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter has 2 outputs. It only needs a voltage of at least 3.5 V while not exceeding 36 V to effectively power your circuit. With an adjustable output that has a voltage of 1.19 to 9 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.8%. This part offers a switching frequency of 400 kHz in order to work properly. This converter has an operating temperature range of -40 °C to 85 °C.
输出接口数 2
输出电压 1.19V ~ 9V
输出电流 ≤2 A
开关频率 400kHz MAX
占空比 99 %
输入电压Max 36 V
输入电压Min 3.5 V
输出电流Max 2 A
最大占空比 0.99
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3.5V ~ 30V
输入电压 3.5V ~ 36V
安装方式 Surface Mount
引脚数 28

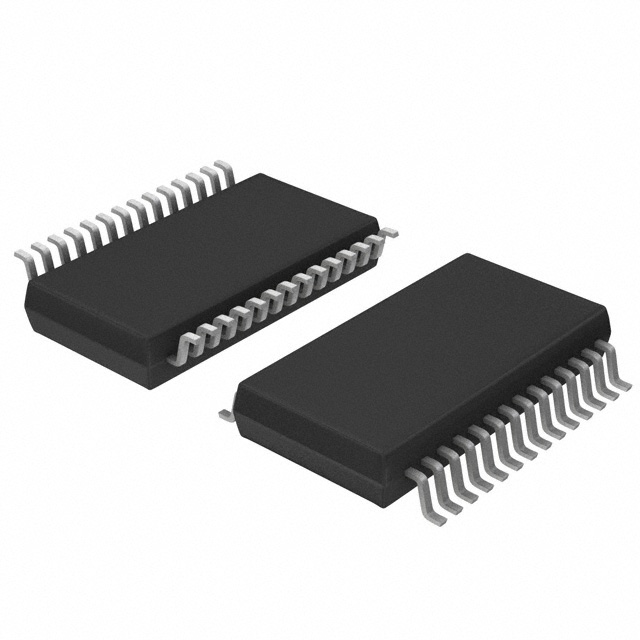

封装 SSOP-28
封装 SSOP-28
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC1438IG-ADJ#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1438IG-ADJ 凌力尔特 | 完全替代 | LTC1438IG-ADJ#PBF和LTC1438IG-ADJ的区别 |
