DC-DC converter; step down; Uin:4.5÷24V; Uout:0.6÷5.5V; 25A
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 15 A. This will operate at a minimum voltage of 4.5 V and a maximum voltage of 24 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 0.6 to 5.5 V, this is power management at its best. It has a switching frequency of 200 to 1000 kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 0.6V ~ 5.5V
输出电流 15 A
开关频率 200kHz ~ 1MHz
输入电压Max 24 V
输入电压Min 4.5 V
输出电压Max 5.5 V
输出电压Min 0.6 V
输出电流Max 15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.5.24 V
安装方式 Surface Mount

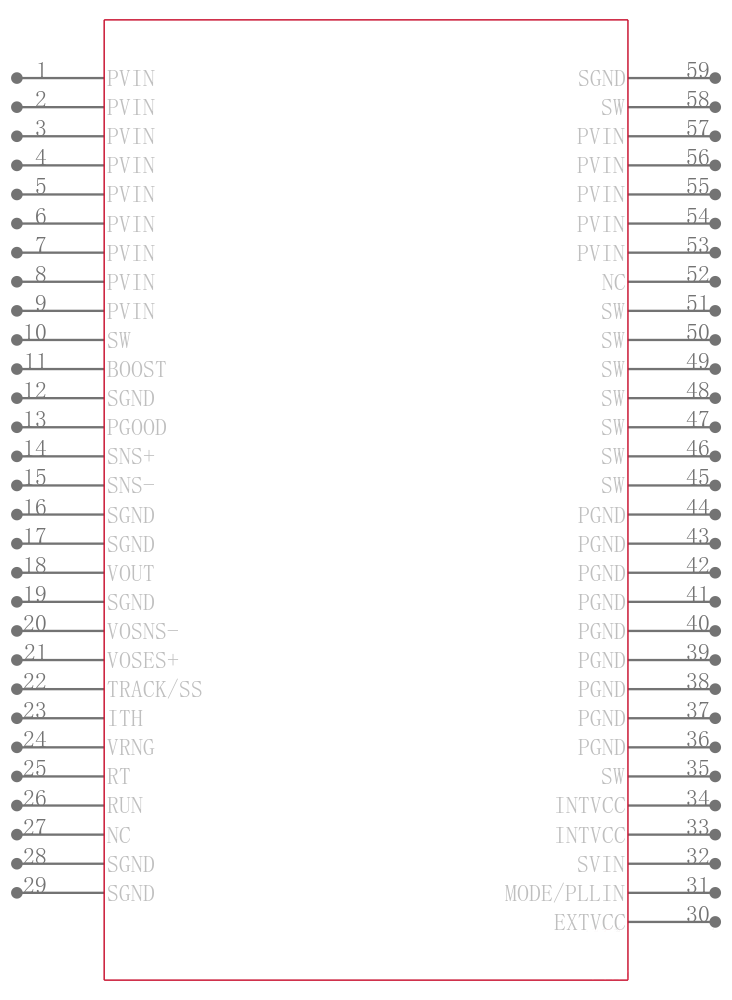

引脚数 56

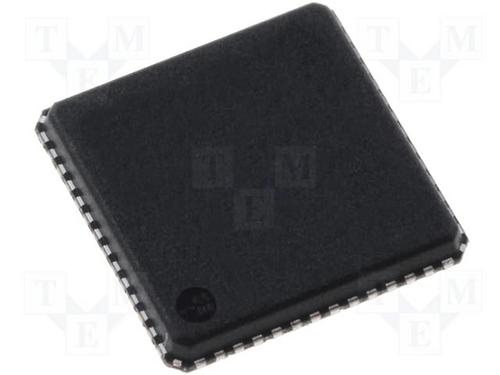

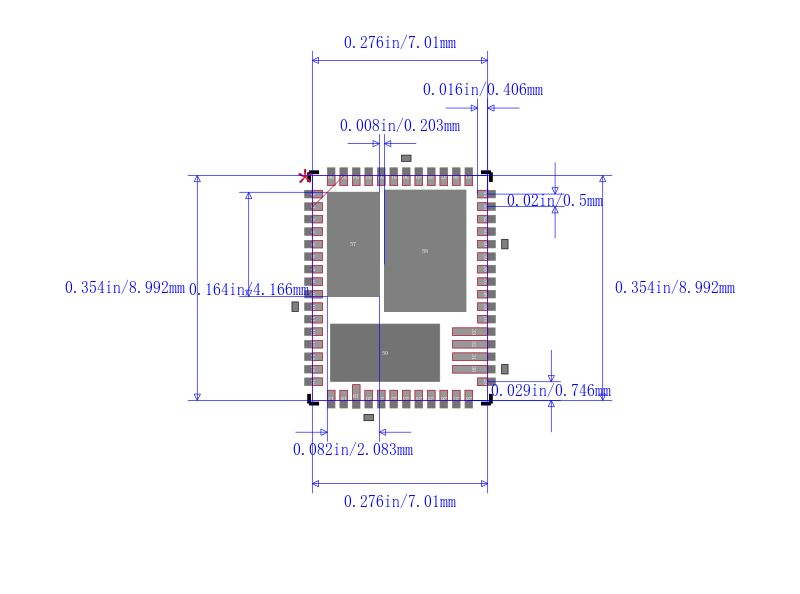

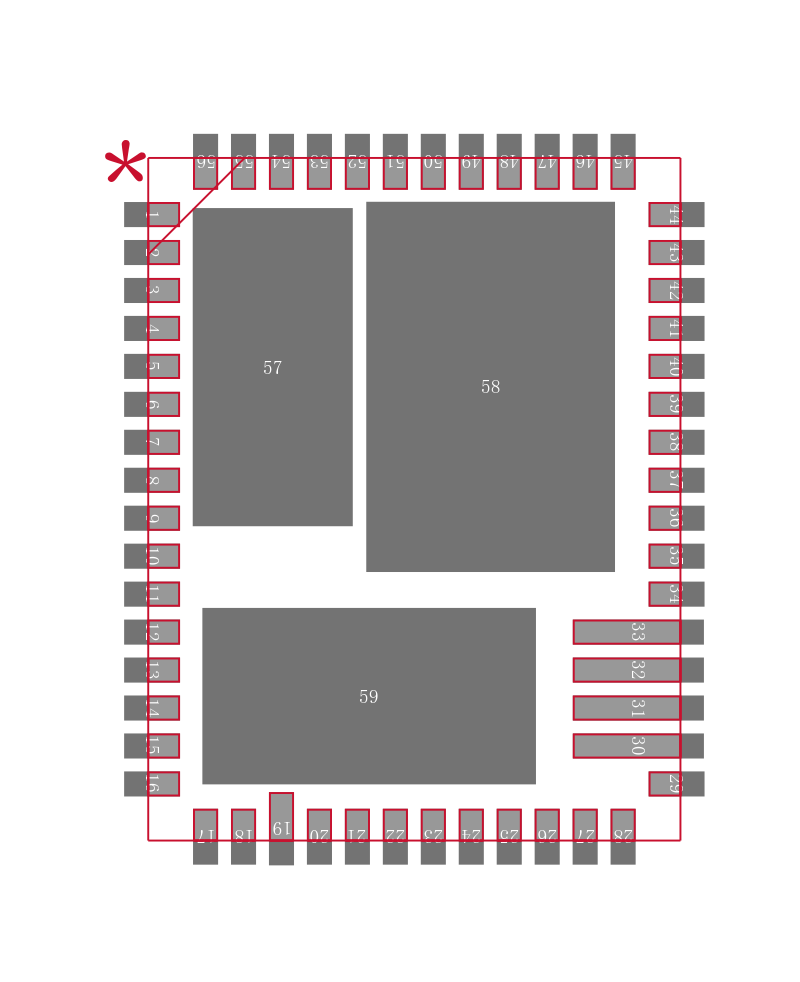

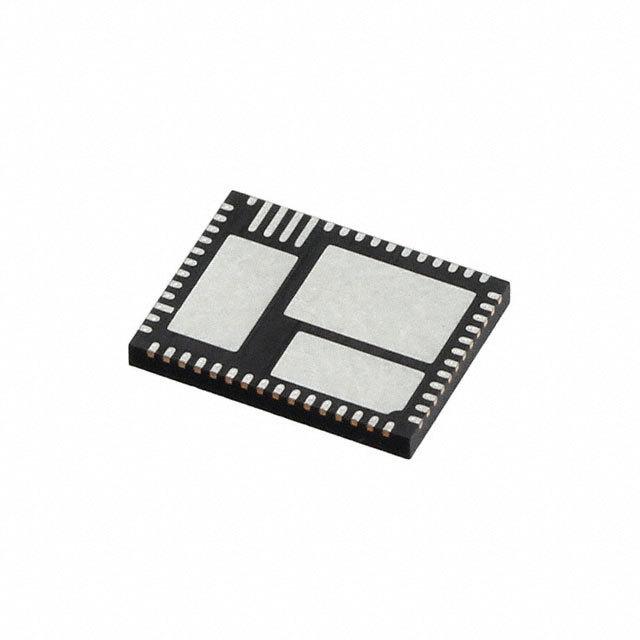

封装 QFN-56
高度 0.95 mm
封装 QFN-56
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3613EWKH#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3613EWKH#PBF 凌力尔特 | 类似代替 | LTC3613EWKH#TRPBF和LTC3613EWKH#PBF的区别 |
LTC3613IWKH#PBF 凌力尔特 | 类似代替 | LTC3613EWKH#TRPBF和LTC3613IWKH#PBF的区别 |
