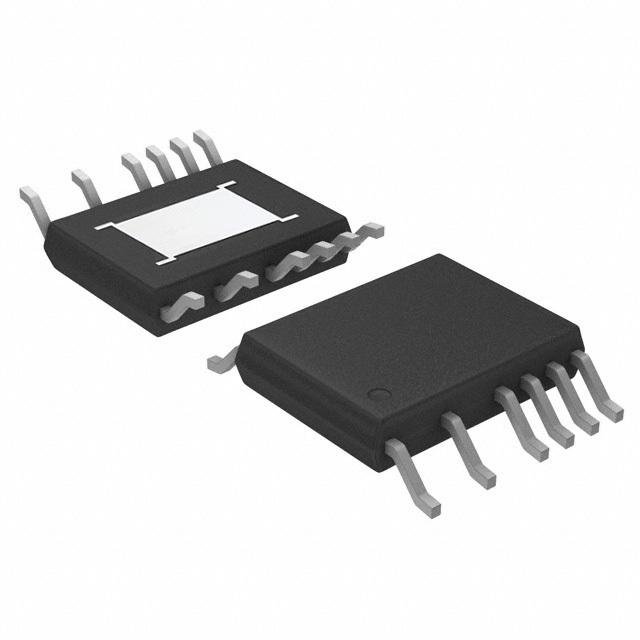

LINEAR TECHNOLOGY LTC3638MPMSE#PBF 芯片, 直流/直流转换器, 降压, 0.25A, MSOP-16
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 0.25 A. The best way to provide power to your application is by using this, which needs a voltage of at least 4 V and no higher than 140 V. With an adjustable output that has a voltage of 0.8 to 140 V, this is power management at its best. This device has a typical switch current of 0.575 A. This converter has a minimum operating temperature of -55 °C and a maximum of 150 °C.
输出接口数 1
输出电压 0.8V ~ 140V
输出电流 250 mA
针脚数 16
开关电流 0.575 A
输入电压Max 140 V
输入电压Min 4 V
输出电压Max 140 V
输出电压Min 800 mV
输出电流Max 0.25 A
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 16
封装 MSOP-16
高度 0.86 mm
封装 MSOP-16
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3638MPMSE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3638EMSE#PBF 凌力尔特 | 类似代替 | LTC3638MPMSE#PBF和LTC3638EMSE#PBF的区别 |
LTC3638IMSE#PBF 凌力尔特 | 类似代替 | LTC3638MPMSE#PBF和LTC3638IMSE#PBF的区别 |
LTC3638HMSE#PBF 凌力尔特 | 类似代替 | LTC3638MPMSE#PBF和LTC3638HMSE#PBF的区别 |
