LINEAR TECHNOLOGY LTC3784MPUFD#PBF 直流/直流开关升压逐步递增稳压器, 可调, 2.3V-60V输入, 25A输出, 900kHz, QFN-28
If you need to change voltage levels in your DC circuit design use the synchronous boost DC voltage controller from . This DC voltage controller has single output. With an output that has a voltage of 60Max V, this is power management at its best. This DC voltage controller has an input voltage of 4.5 to 60 V. You can operate this at a switching frequency of 50 to 900 kHz. This DC voltage controller has a minimum operating temperature of -55 °C and a maximum of 150 °C.
输出接口数 1
输出电压 ≤60.0 V
输出电流 25 A

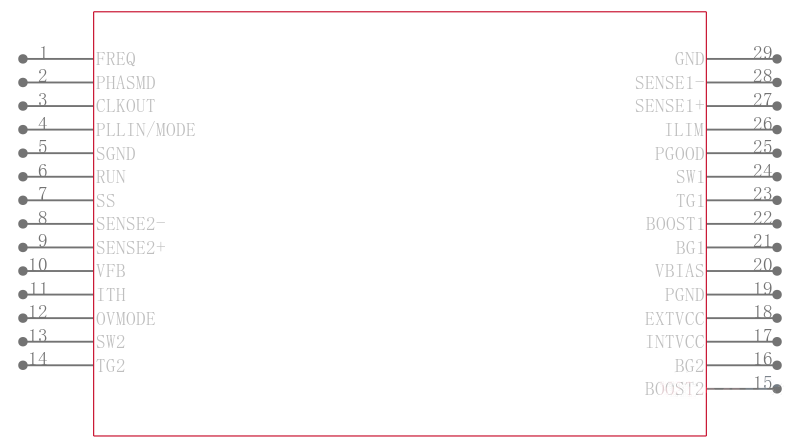

针脚数 28
开关频率 900 kHz
输入电压Max 60 V
输入电压Min 2.3 V
输出电压Max 60 V
最大占空比 0.96
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 28

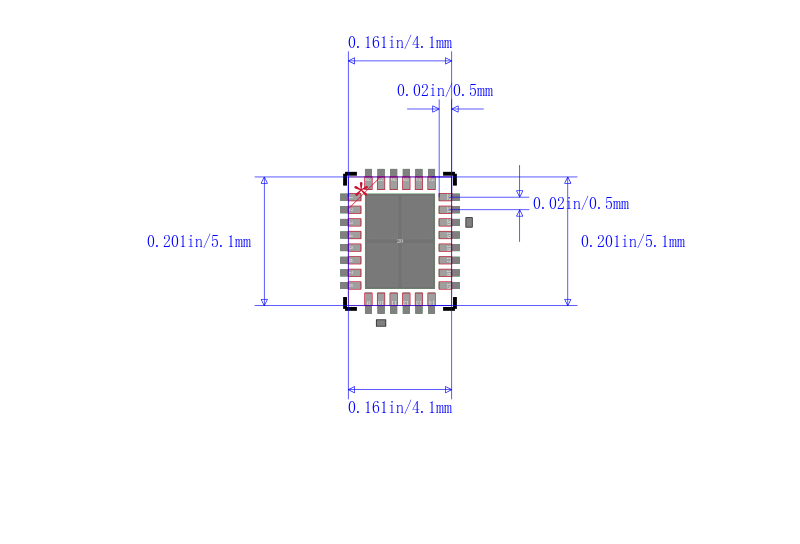

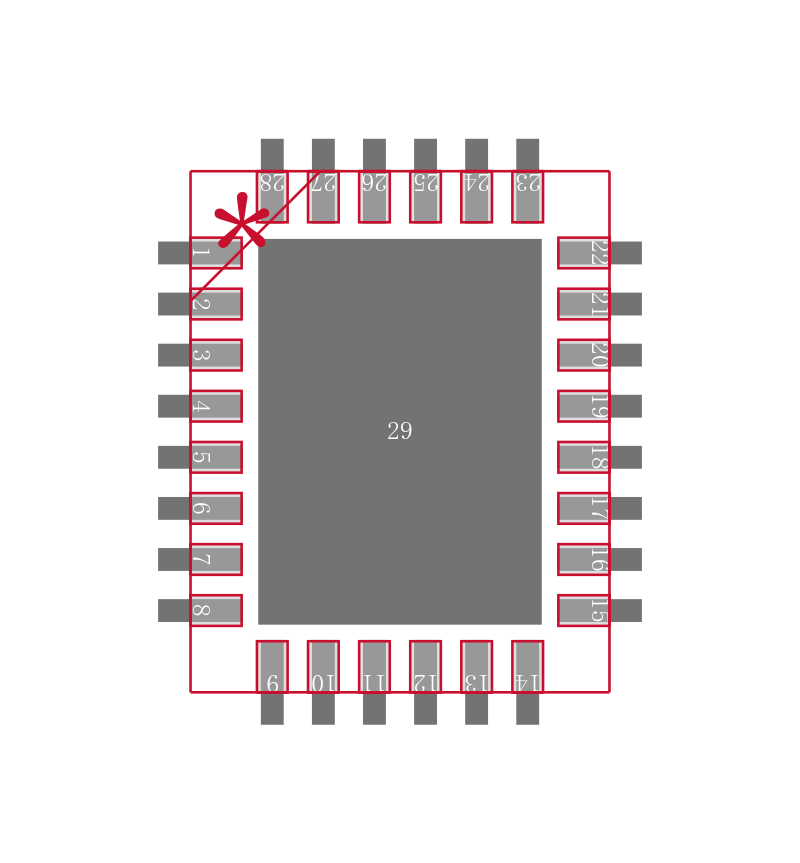

封装 QFN-28
高度 0.75 mm
封装 QFN-28
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3784MPUFD#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3784EUFD#PBF 凌力尔特 | 类似代替 | LTC3784MPUFD#PBF和LTC3784EUFD#PBF的区别 |
LTC3784IUFD#PBF 凌力尔特 | 类似代替 | LTC3784MPUFD#PBF和LTC3784IUFD#PBF的区别 |
LTC3784HUFD#PBF 凌力尔特 | 类似代替 | LTC3784MPUFD#PBF和LTC3784HUFD#PBF的区别 |
