LINEAR TECHNOLOGY LTC3784MPGN#PBF 直流/直流开关升压逐步递增稳压器, 可调, 2.3V-60V输入, 25A输出, 900kHz, SSOP-28
Do you have to step up or down from one voltage level to another? The synchronous boost DC voltage controller gives you the ability to do just that. With an output that has a voltage of 60Max V, this is power management at its best. This DC voltage controller has single output. This DC voltage controller has an input voltage of 4.5 to 60 V. Its switching regulator has a frequency of 50 to 900 kHz. This DC voltage controller has an operating temperature range of -55 °C to 150 °C.
输出接口数 1
输出电压 ≤60.0 V
输出电流 25 A
针脚数 28
开关频率 900 kHz
输入电压Max 60 V
输入电压Min 2.3 V
输出电压Max 60 V
最大占空比 0.96
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 28

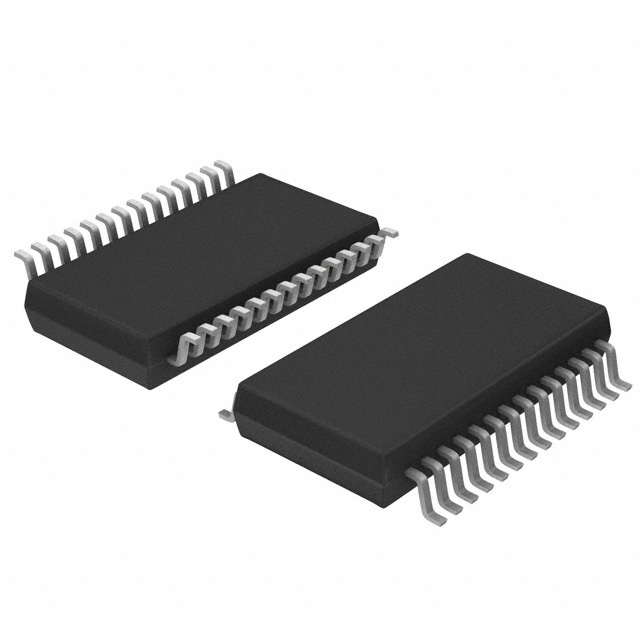

封装 SSOP-28
封装 SSOP-28
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3784MPGN#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3784EGN#PBF 凌力尔特 | 类似代替 | LTC3784MPGN#PBF和LTC3784EGN#PBF的区别 |
LTC3784HGN#PBF 凌力尔特 | 类似代替 | LTC3784MPGN#PBF和LTC3784HGN#PBF的区别 |
