LT1763IDE

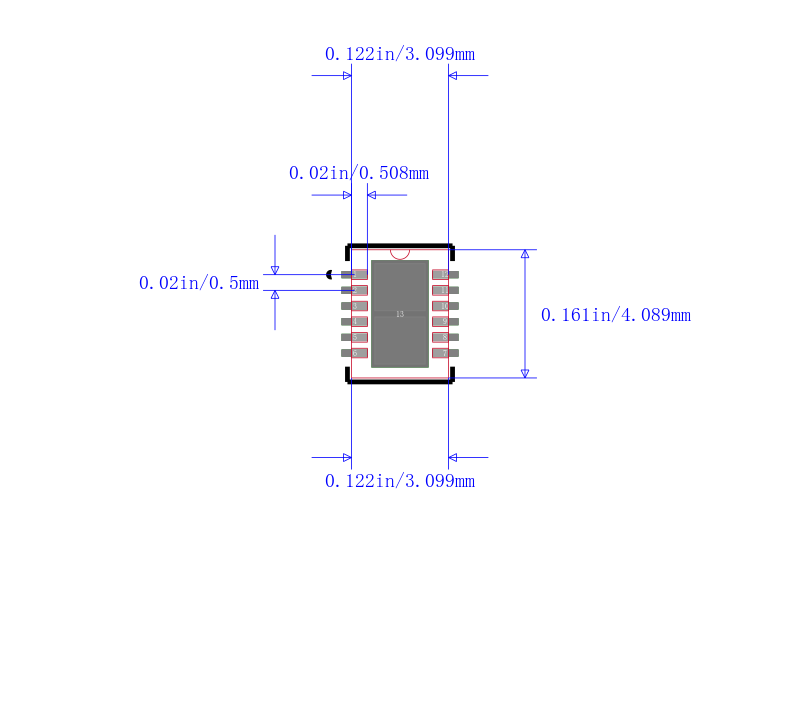

LDO Regulator Pos 1.22V to 20V 0.5A Automotive 12Pin DFN EP

Keep the energy stable for every system by using this LDO linear regulator by . Its typical dropout voltage at current is 0.13@10mA|0.17@50mA|0.2@100mA|0.3@500mA V. This voltage regulation device"s single output can produce a current up to 0.5 A. It only needs a voltage of at least 1.8 V while not exceeding 20 V to effectively power your circuit. With an adjustable output that has a voltage of 1.22 to 20 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 6mV and line regulation of 5mV. The maximum dropout voltage is 0.19@10mA|0.22@50mA|0.24@100mA|0.35@500mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
