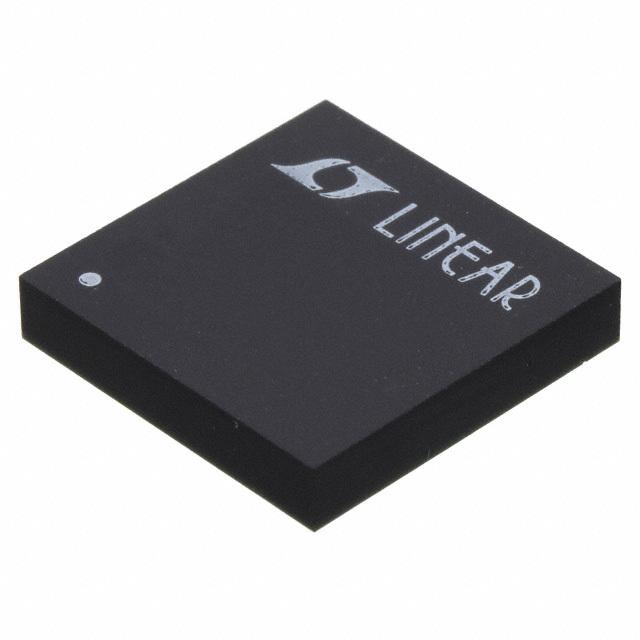

LTM8001IY#PBF

Conv DC-DC 6V to 36V Step Down Single-Out 1.2V to 24V 5A uModule Automotive 121Pin BGA Tray

Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 5 A. It only needs a voltage of at least 6 V while not exceeding 36 V to effectively power your circuit. With an adjustable output that has a voltage of 1.2 to 24 V, this is power management at its best. At a load regulation of 1.2%Typ and line regulation of 0.5%Typ a constant current can be produced at the output of your circuit. This part offers a switching frequency of 1000Typ kHz in order to work properly. The component will be shipped in tray format. This device utilizes umodule technology. This converter has an operating temperature range of -40 °C to 125 °C.
