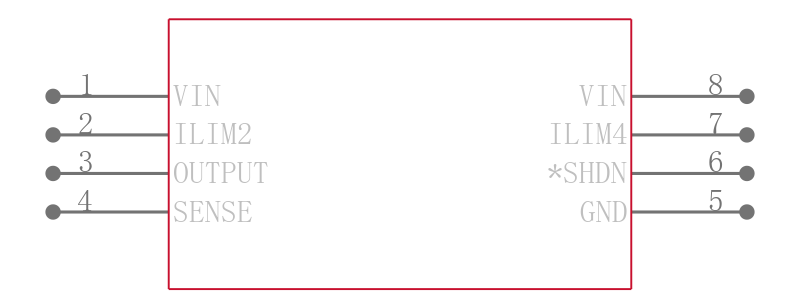

IC REG LDO -5V 0.5A 8DIP
Description
The LT®1175 is a negative micropower low dropout regulator. It features 45µA quiescent current, dropping to 10µA in shutdown. A new reference amplifier topology gives precision DC characteristics along with the ability to maintain good loop stability with an extremely wide range of output capacitors. Very low dropout voltage and high efficiency are obtained with a unique power transistor anti-saturation design. Adjustable and fixed 5V versions are available.
Feaures
Operating Current: 45µA
Adjustable Current Limit
Low Voltage Linear Dropout Characteristics
Stable with Wide Range of Output Capacitors
Shutdown Current: 10µA
Positive or Negative Shutdown Logic
Fixed 5V and Adjustable Versions
Tolerates Reverse Output Voltage
Available in 8-pin PDIP and SO Packages, 3-lead SOT-223, 5-Pin Surface Mount DD and Through-Hole
TO-220 Packages
Applications
Analog Systems
Modems
Instrumentation
A/D and D/A Converters
Interface Drivers
Battery-Powered Systems
