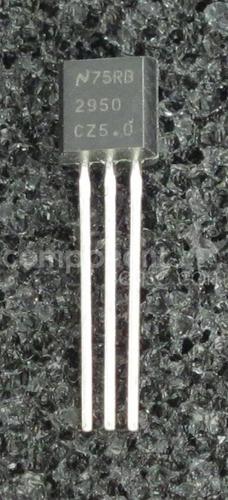

TEXAS INSTRUMENTS LP2950CZ-5.0 固定电压稳压器, LDO, 高达30V, 380mV压差, 5V输出, 100mA输出, TO-92-3
The is a 5V fixed output low-dropout LDO Linear Regulator with very low quiescent current 75µA typical and very low-dropout LDO voltage typical 40mV at light loads and 380mV at 100mA. Furthermore, the quiescent current of the increases only slightly in dropout, prolonging battery life. Careful design of the device has minimized all contributions to the error budget. This includes a tight initial tolerance 0.5% typical, extremely good load and line regulation 0.05% typical and a very low output voltage temperature coefficient, making the part useful as a low-power voltage reference. One such feature is an error flag output which warns of a low output voltage, often due to falling batteries on the input. It may be used for a power-ON reset. A second feature is the logic-compatible shutdown input which enables the regulator to be switched on and off.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2950CZ-5.0 TI 德州仪器 | 当前型号 | 当前型号 |
LP2950-50LPRE3 德州仪器 | 类似代替 | LP2950CZ-5.0和LP2950-50LPRE3的区别 |
LP2950ACZ-5.0/NOPB 德州仪器 | 类似代替 | LP2950CZ-5.0和LP2950ACZ-5.0/NOPB的区别 |
LP2950CZ-5.0/NOPB 德州仪器 | 类似代替 | LP2950CZ-5.0和LP2950CZ-5.0/NOPB的区别 |
