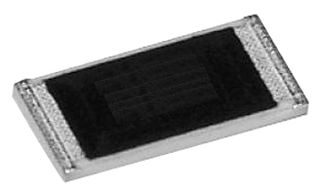

WELWYN LR1206-1R0FW 片式电阻器, 表面贴装, AEC-Q200 LR系列, 1 ohm, 200 V, 1206 [3216公制], 500 mW, ± 1%
The Welwyn LR series are automotive grade, low value flat chip resistors with conventional orientation. The Resistance range includes E24 decade values from 0.003ohm to 1ohm. LR series has solder plated copper wrap around termination.
- .
- EIA 1206, 1210, 2512 chip sizes available
- .
- Automotive grade AEC-Q200 compliant
- .
- Power rating of 0.5W LR1206, 1W LR2010 and 2W LR2512
- .
- ±1%, ±2% and ±5% tolerance
- .
- Dielectric withstand for 200V
- .
- ±100ppm/°C, +200ppm/°C, +300ppm/°C, +500ppm/°C and +900ppm/°C TCR values available
- .
- Operating temperature range -55°C to +150°C
额定电压DC 200 V
额定功率 500 mW
电阻 1 Ω
阻值偏差 ±1 %
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.8 mm
封装公制 3216
封装 1206
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Consumer Electronics, Industrial, 电源管理, 便携式器材, Automotive, Portable Devices, 消费电子产品, 工业, 车用
RoHS标准
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LR1206-1R0FW TT Electronics/Welwyn | 当前型号 | 当前型号 |
WF12P1R00FTL 台湾华科 | 类似代替 | LR1206-1R0FW和WF12P1R00FTL的区别 |
MCWF12P1R00FTL Multicomp | 类似代替 | LR1206-1R0FW和MCWF12P1R00FTL的区别 |
CRCW12061R00FKEAHP 威世 | 功能相似 | LR1206-1R0FW和CRCW12061R00FKEAHP的区别 |
