3A,12V输出,降压型DC/DC变换器
3.0 A, 15 V, Step−Down Switching Regulator
The LM2576 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step−down switching regulator buck converter. All circuits of this series are capable of driving a 3.0 A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V, and an adjustable output version.
These regulators were designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the LM2576 are offered by several different inductor manufacturers.
Features
•3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions
•Adjustable Version Output Voltage Range, 1.23 to 37 V ±4% Maximum Over Line and Load Conditions
•Guaranteed 3.0 A Output Current
•Wide Input Voltage Range
•Requires Only 4 External Components
•52 kHz Fixed Frequency Internal Oscillator
•TTL Shutdown Capability, Low Power Standby Mode
•High Efficiency
•Uses Readily Available Standard Inductors
•Thermal Shutdown and Current Limit Protection
•Moisture Sensitivity Level MSL Equals 1
•Pb−Free Packages are Available
Applications
•Simple High−Efficiency Step−Down Buck Regulator
•Efficient Pre−Regulator for Linear Regulators
•On−Card Switching Regulators
•Positive to Negative Converter Buck−Boost
•Negative Step−Up Converters
•Power Supply for Battery Chargers
输出接口数 1
输出电压 12 V
输出电流 3 A
开关频率 52 kHz
输入电压Max 40 V
输入电压Min 7 V
输出电压Min 12 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 6

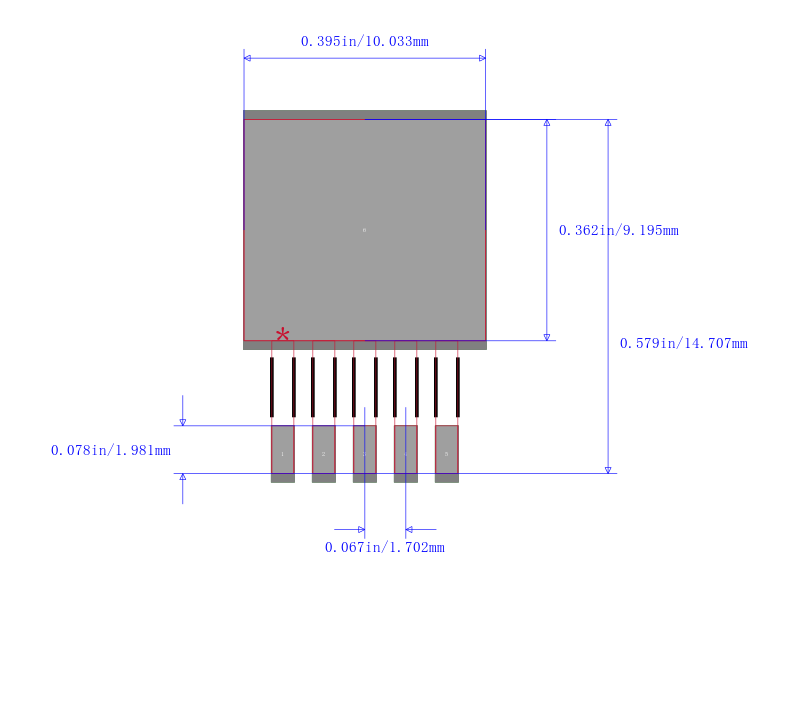

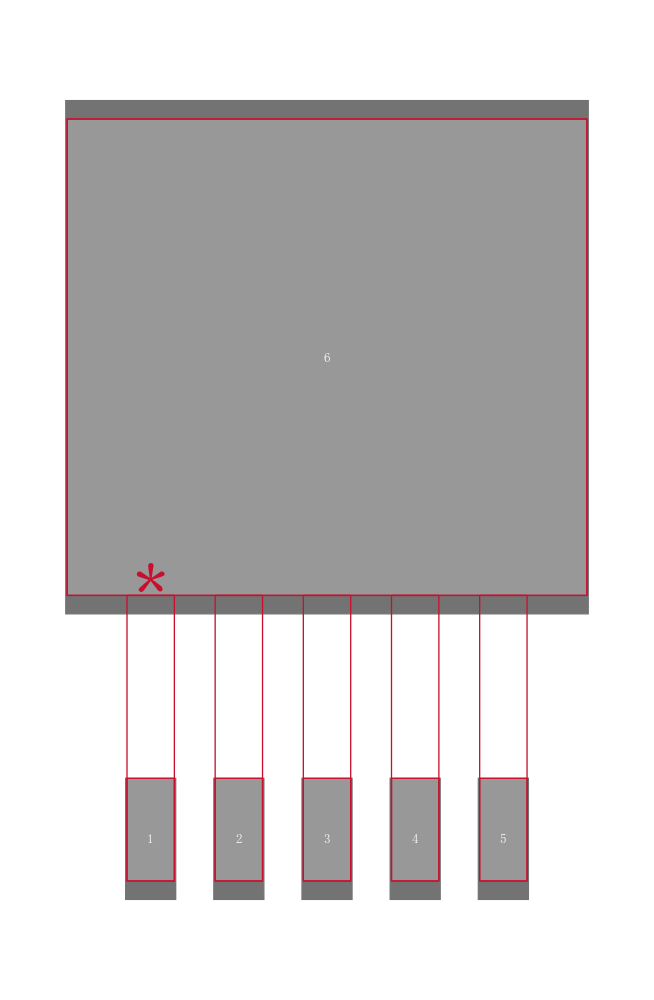

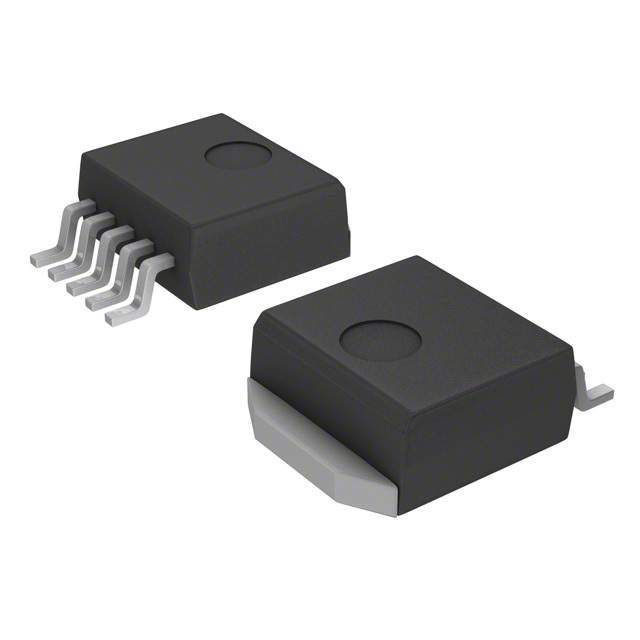

封装 TO-263-6
封装 TO-263-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tube
制造应用 On-Card Switching Regulators, Power Supply for Battery Chargers, Negative Step-Up Converters, Efficient Pre-Regulator for Linear Regulators, Positive to Negative Converter Buck-Boost, Simple High-Efficiency Step-Down Buck Regulator
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2576D2T-012G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LM2576D2TR4-012G 安森美 | 完全替代 | LM2576D2T-012G和LM2576D2TR4-012G的区别 |
LM2576D2T-012 安森美 | 完全替代 | LM2576D2T-012G和LM2576D2T-012的区别 |
LM2576HVS-12/NOPB 德州仪器 | 功能相似 | LM2576D2T-012G和LM2576HVS-12/NOPB的区别 |
