LD1086DT25

1.5A低压降固定和可调正电压调节器 1.5A LOW DROP FIXED AND ADJUSTABLE POSITIVE VOLTAGE REGULATORS

DESCRIPTION

The LD1086 is a LOW DROP Voltage Regulator able to provide up to 1.5A of Output Current. Dropout is guaranteed at a maximum of 1.2V at the maximum output current, decreasing at lower loads. The LD1086 is pin to pin compatible with the older 3-terminal adjustable regulators, but has better performances in term of drop and output tolerance.

■ TYPICAL DROPOUT 1.3V AT 1.5A

■ THREE TERMINAL ADJUSTABLE OR FIXED OUTPUT VOLTAGE 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 3.6V, 5V, 8V, 9V, 12V.

■ GUARANTEED OUTPUT CURRENT UP TO 1.5A

■ OUPUT TOLERANCE ±1% AT 25°C AND ±2% IN FULL TEMPERATURE RANGE

■ INTERNAL POWER AND THERMAL LIMIT

■ WIDE OPERATING TEMPERATURE RANGE -40°C TO 125°C

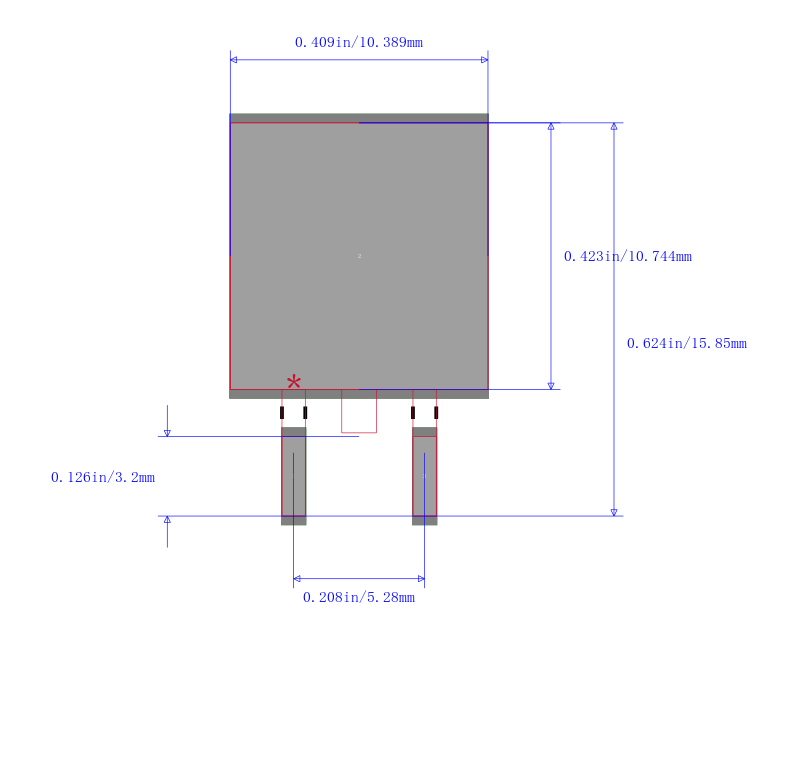

■ PACKAGE AVAILABLE: TO-220, D2PAK,D2PAK/A, DPAK

■ PINOUT COMPATIBILITY WITH STANDARD ADJUSTABLE VREG
