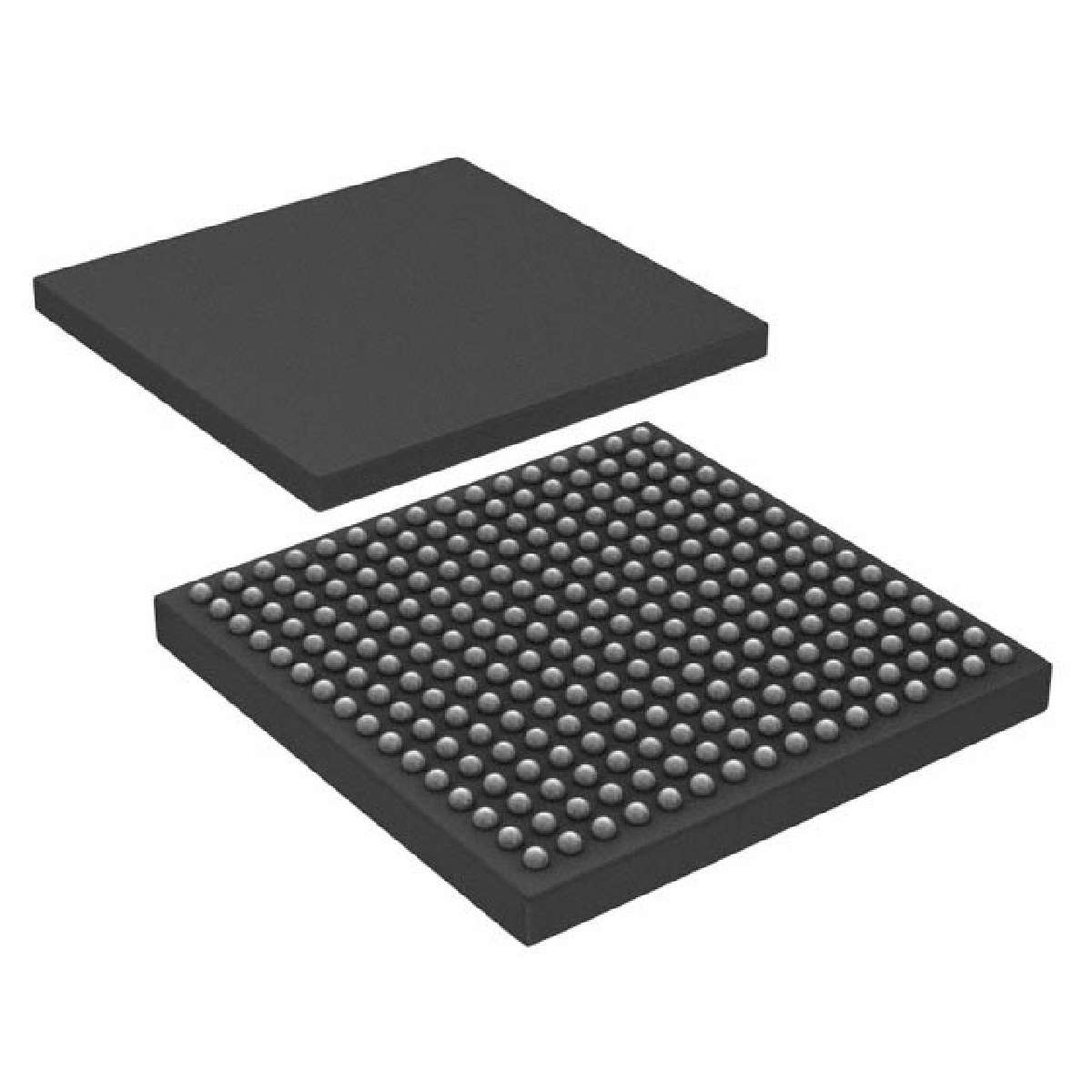

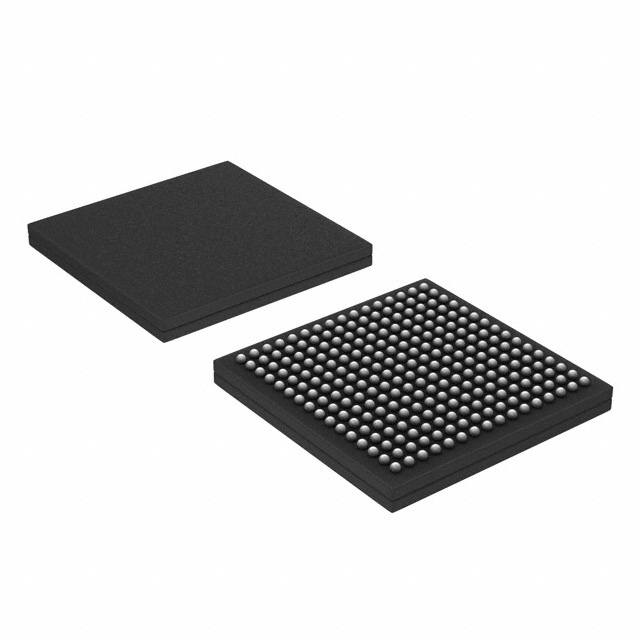

LPC1850FET256,551

NXP  LPC1850FET256,551  微控制器, 32位, ARM 皮质-M3, 180 MHz, 200 KB, 256 引脚, LBGA

The is a 32-bit Flashless Microcontroller based on ARM Cortex-M3 core with RISC architecture operates at a maximum frequency of 180MHz. The ARM Cortex-M3 is a next generation core that offers system enhancements such as low power consumption, enhanced debug features and a high level of support block integration. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching. The device incorporates 200kB of on-chip SRAM, a quad SPI flash interface SPIFI, a state configurable Timer/PWM SCTimer/PWM subsystem, two high-speed USB controllers, Ethernet, LCD, an external memory controller and multiple digital and analog peripherals and 164 general-purpose I/O pins.

.

ARM Cortex-M3 built-in memory protection unit MPU supporting eight regions

.

Non-maskable Interrupt NMI input

.

JTAG and serial wire debug, serial trace, eight breakpoints and four watch points

.

Enhanced trace module ETM and Enhanced trace buffer ETB support

.

System tick timer

.

Multiple SRAM blocks with separate bus access

.

Crystal oscillator with an operating range of 1MHz to 25MHz

.

12MHz Internal RC oscillator trimmed to 3 % accuracy

.

Ultra-low power RTC crystal oscillator

.

External memory controller EMC

.

Secure digital Input/output SD/MMC card interface

.

8-channel General-purpose DMA controller

.

Motor control PWM for three-phase motor control

.

Quadrature encoder interface QEI

.

Repetitive interrupt timer RI Timer

.

Windowed watchdog timer

.

Ultra-low power real-time clock RTC

.

Alarm timer - can be battery powered

.

Unique ID for each device

.

Four reduced power modes - Sleep, deep-sleep, power-down and deep power-down
