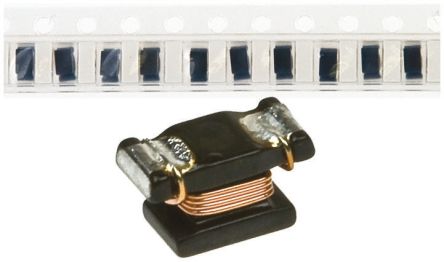

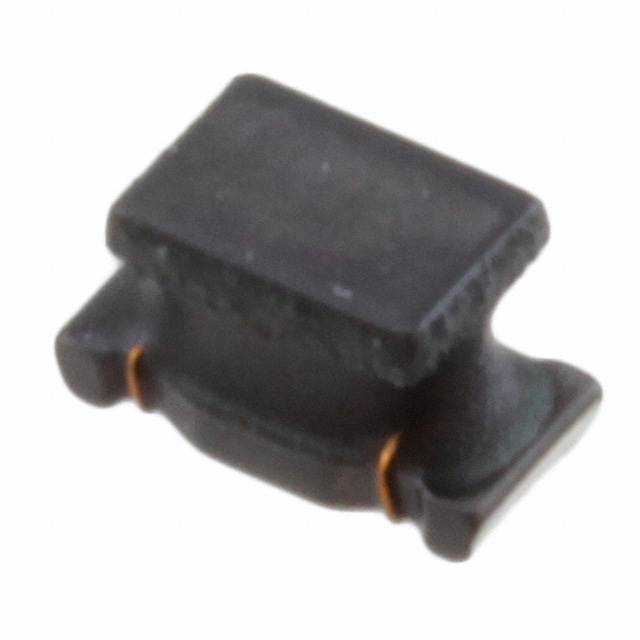

MURATA LQH31MN101K03L 表面贴装高频电感器, LQH31MN_03系列, 100 µH, ± 10%, 1206 [3216 公制], 7 MHz, 12 ohm
值Inductance| 100UH \---|--- 误差Tolerance| ±10% 额定电流Current Rating| 45mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 40 @ 2.5MHz 自振谐频率SRFFrequency - Self Resonant| 7MHz DC电阻DCRDC Resistance DCR| Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| LQH31M/LQH32M/LQH43M N Series LQH31M series consists of wound type chip coils using Murata"s original ferrite core and auto winding technology. Features 1. Wide inductance range from 0.15 to 100 micro H 2. High Q value at high frequencies and low DC resistance 3. Small size 3.2x1.6x1.8mm and tight pitch mounting 4. Low DC resistance and large current 5. Both flow and reflow soldering heat resistance 描述与应用| LQH31M/LQH32M/LQH43M(N)系列 LQH31M系列是采用的原铁氧体磁芯及全自动绕线技术制作的绕线型芯片线圈。 特点 1。宽电感范围为0.15〜100微ħ 2。高Q值在高频率和低直流电阻 3。小尺寸(3.2x1.6x1.8mm)和紧间距安装 4。低直流电阻,大电流 5。流量和回流焊接耐热性
额定电流 45 mA
容差 ±10 %
电感 100 µH
自谐频率 7 MHz
Q值 40.0
产品系列 LQH
电阻 12.0 Ω
共振频率 7.00 MHz
电感公差 ±10 %
测试频率 1 MHz
电阻DC) ≤15.6 Ω
额定电流DC 45 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 12 Ω
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.8 mm
封装公制 3216
封装 1206
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
