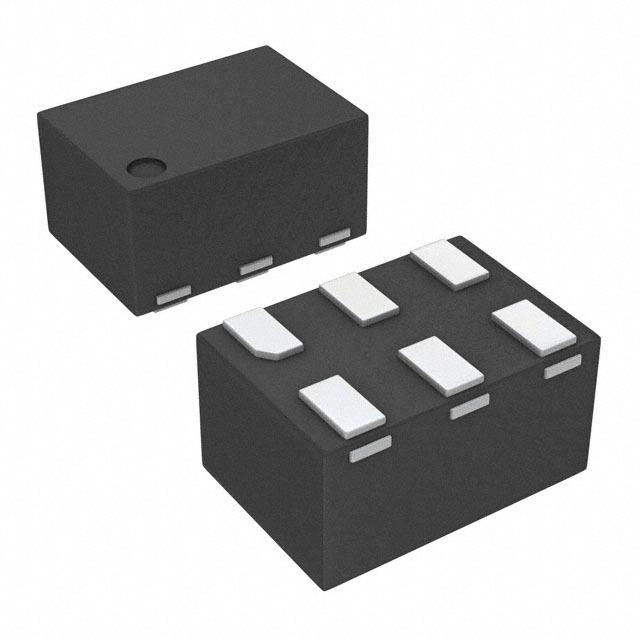

350mA Dual Rail Linear Regulator 6-USON -40℃ to 125℃
* Excellent load transient response: ±15mV typical * Excellent line transient response: ±1mV typical * 0.7V ≤ VIN ≤ 4.5V * 2.5V ≤ VBATT ≤ 5.5V * 0.5V ≤ VOUT ≤ 2.0V * For ILOAD = 350mA: * VBATT ≥ VOUTNOM \\+ 1.5V or 2.5V whichever is higher * For ILOAD = 150mA: * VBATT ≥ VOUTNOM \\+ 1.3V or 2.5V whichever is higher * 50µA typical quiescent current from VBATT * 10µA typical quiescent current from VIN * 0.1µA typical quiescent current in shutdown * Ensured 350mA output current * Noise voltage = 100µVRMS typical * Operates from a single Li-Ion cell or 3 cell * NiMH/NiCd batteries * Only one or two tiny surface-mount external components required depending on application * Small, thin 5-bump DSBGA package and 6-pin Chip On Lead USON package, lead free * Thermal-overload and short-circuit protection * -40°C to +125°C junction temperature range
输出接口数 1
输出电压 1.2 V
输出电流 350 mA
静态电流 61.0 µA
输出电容类型 Ceramic
跌落电压 0.128V @350mA
调节输出数 1
输入电压Max 4.5 V
输入电压Min 0.7 V
输出电流Max 0.35 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤4.5 V
安装方式 Surface Mount
引脚数 6
封装 UFDFN-6
封装 UFDFN-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP5952LCX-1.2/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP5952LC-1.2/NOPB 德州仪器 | 类似代替 | LP5952LCX-1.2/NOPB和LP5952LC-1.2/NOPB的区别 |
LP5952LC-1.2 德州仪器 | 类似代替 | LP5952LCX-1.2/NOPB和LP5952LC-1.2的区别 |
