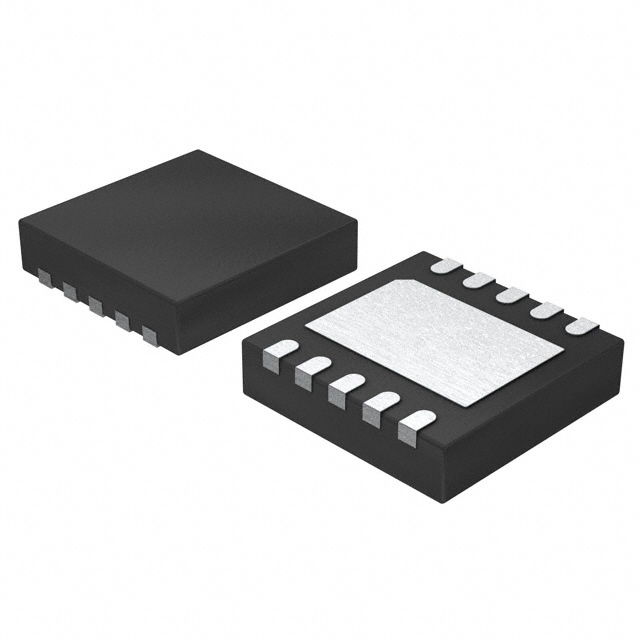

Dual Linear Regulator with 300mA and 150mA Outputs and Power-On-Reset 10-WSON -40℃ to 85℃
Linear Voltage Regulator IC 2 Output 150mA, 300mA 10-WSON 3x3
得捷:
IC REG LIN 3V 150MA/300MA 10WSON
贸泽:
LDO Voltage Regulators
输出接口数 2
输出电压 3 V
输出电流 150mA, 300mA
通道数 2
静态电流 35.0 µA
输出电容类型 Ceramic
跌落电压 0.11 V @ 150 mA, 0.21 V @ 300 mA
调节输出数 2
输入电压Max 6 V
输入电压Min 2 V
工作温度Max 85 ℃
工作温度Min 40 ℃
输入电压 2V ~ 6V
安装方式 Surface Mount
引脚数 10
封装 WSON-10
封装 WSON-10
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
