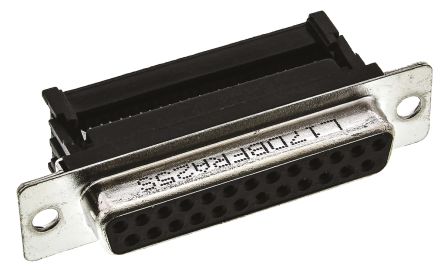

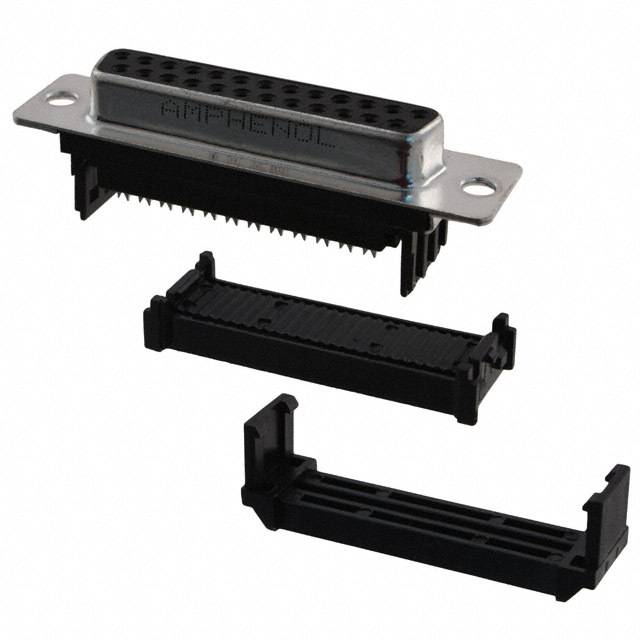

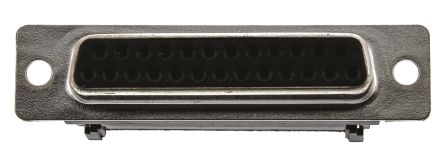

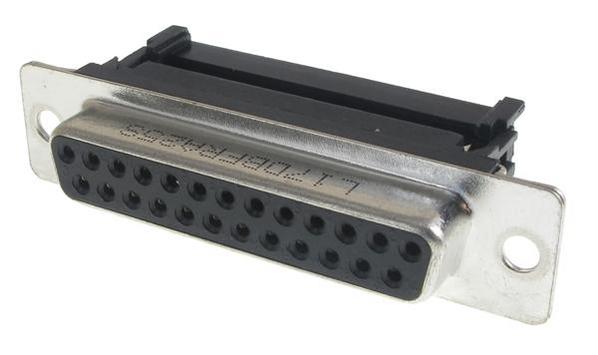

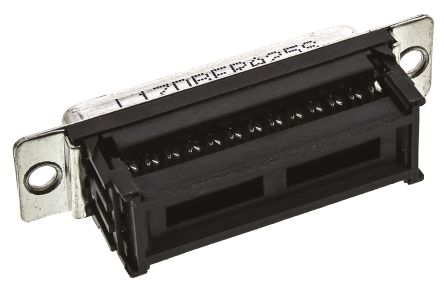

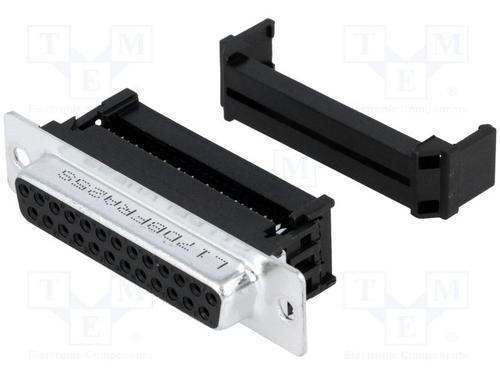

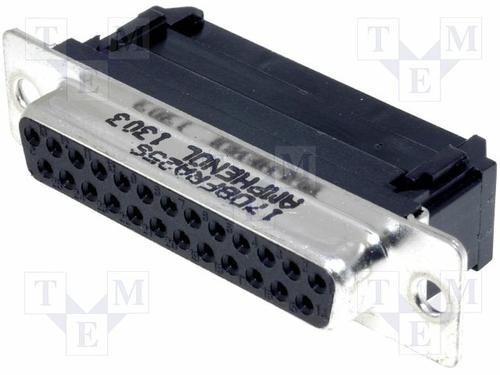

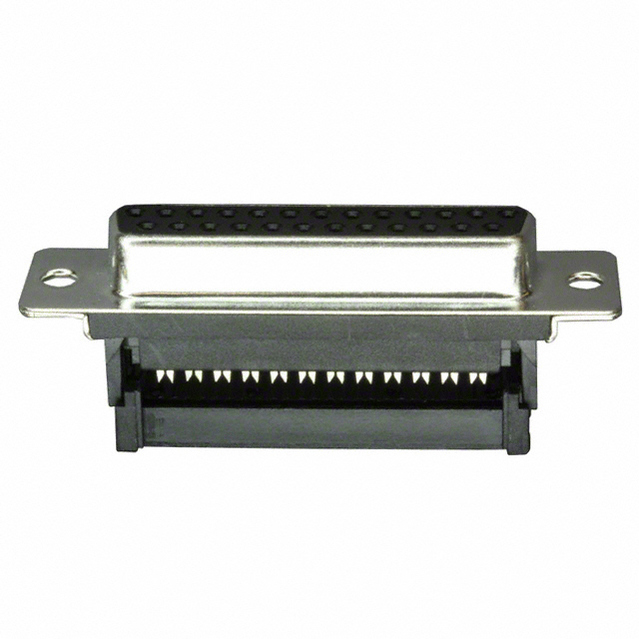

L17DBFRA25S

AMPHENOL  L17DBFRA25S  连接器, D sub, 堆叠式, 17D系列, DB, 插座, 25 触点, 钢主体, IDC / IDT

DFR 系列扁平带状 IDC D-Sub 插座

DFR 系列 IDC D-Sub 插座连接器，适合与标准 1.27mm 扁平电缆一起使用。 这些 DFR IDC 带状电缆 D-sub 插座连接器，具有镀锡钢外壳、玻璃填充热塑性 UL 94V-0 绝缘体、镀金 IDC 插座触点和 M3 螺钉锁，用于前面安装。 这些母 DFR 扁平带状电缆 D-sub 连接器的典型应用包括工业、电信和任何工业标准输入/输出应用。 有关配接 DFR IDC D-Sub 插头连接器，请参见库存号 691-8998 典型。

欧时:
Amphenol DFR 系列 2.77mm 节距 25 路 IDC D-Sub 带状电缆连接器 插座 L17DBFRA25S, 钢外壳

e络盟:
AMPHENOL COMMERCIAL PRODUCTS  L17DBFRA25S  连接器, D-SUB, 标准型, 25路, 母

艾睿:
Communicate with your serial connections using the L17DBFRA25S DVI connector from Amphenol. It has a maximum voltage rating of 250 VAC. This socket type connector&s;s 25 contacts that are made out of brass and plated with gold over nickel. This 2-row connector has a single port. Its pitch is 2.77 mm. It has a right angle body orientation. This device has a maximum current rating of 5 A. L17DBFRA25S is housed in thermoplastic. Its 25 terminals use the idt termination method. This product is 53.04 mm long, 12.55 mm tall and 17.48 mm deep. This DVI connector has an operating temperature of -40 to 125 °C.

富昌:
25 位置 2.77 mm 间距 母头 插座 D-SUB IDC

Chip1Stop:
Conn D-Subminiature SKT 25 POS 2.77mm IDT RA Cable Mount 25 Terminal 1 Port

TME:
Plug; D-Sub; DFR; PIN:25; female; IDC; for ribbon cable; gold flash

Verical:
Conn D-Subminiature SKT 25 POS 2.77mm IDT RA Cable Mount 25 Terminal 1 Port

Newark:
# AMPHENOL COMMERCIAL PRODUCTS  L17DBFRA25S  Standard D Sub Connector, 25 Contacts, Receptacle, DB, 17D Series, Metal Body, IDC / IDT

MASTER:
Conn D-Subminiature SKT 25 POS 2.77mm IDT RA Cable Mount 25 Terminal 1 Port

Electro Sonic:
Conn D-Subminiature SKT 25 POS 2.77mm IDT RA Cable Mount 25 Terminal 1 Port
