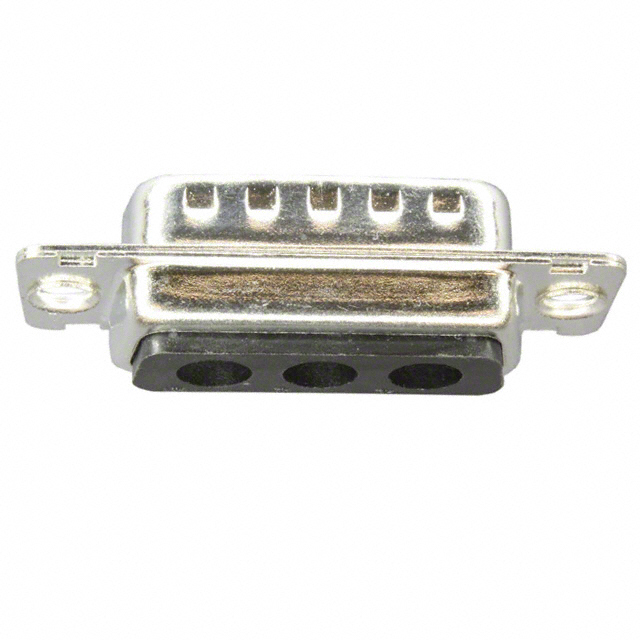

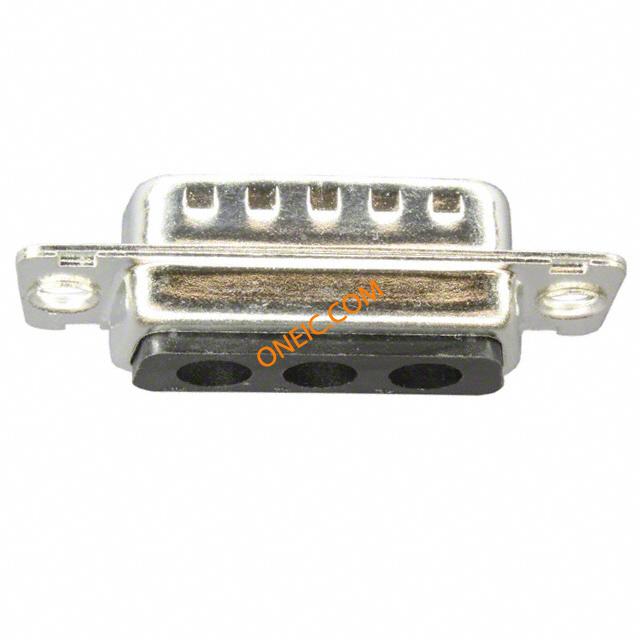

AMPHENOL L717TWA3W3P 连接器, 组合式D-SUB, TW混合型, TW系列, DA-3W3, 插头, 0 触点, 3, 焊接
The TW series D-sub Connectors permits a mix of contacts including signal, power, shielded, high voltage and fibre optics in the same housing with 18 different contacts arrangements. It was first developed from military series and has improved features new contacts, PCB configurations come preloaded with fixed contacts and brackets. A complete range of housings are also available for cable application. These connectors are supplied with screw machined contacts which are fixed in the insulator.
- .
- >5000MR at 500VDC Minimum insulation resistance
- .
- * 7.5A Current rating
- .
- -55 to 155°C Temperature range
触点数 3
极性 Male
触点电镀 Gold
额定电流 7.5 A
绝缘电阻 5000 MΩ
排数 1
拔插次数 200
额定电流Max 7.5 A
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压Max 300 VAC
额定电压 300 V
工作电压Max 300 VAC
接触电阻Max 5 mΩ
安装方式 Solder
封装 200

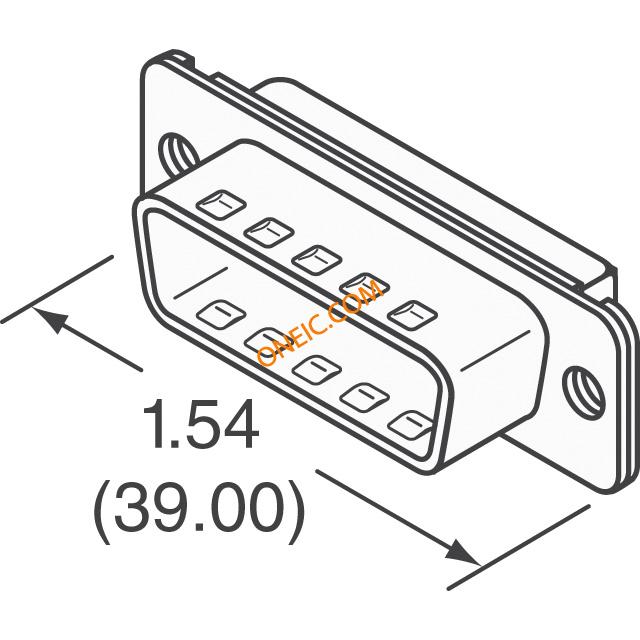

长度 39 mm
高度 12.4 mm
封装 200
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 155℃
产品生命周期 Active
包装方式 Bag
制造应用 计算机和计算机周边, 医用, Industrial, Medical, 工业, Communications & Networking, Computers & Computer Peripherals, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
L717TWA3W3P Amphenol 安费诺 | 当前型号 | 当前型号 |
DAM3W3PK87 ITT科能 | 类似代替 | L717TWA3W3P和DAM3W3PK87的区别 |
D3W3-SDP-31 Multicomp | 功能相似 | L717TWA3W3P和D3W3-SDP-31的区别 |
