L6911E

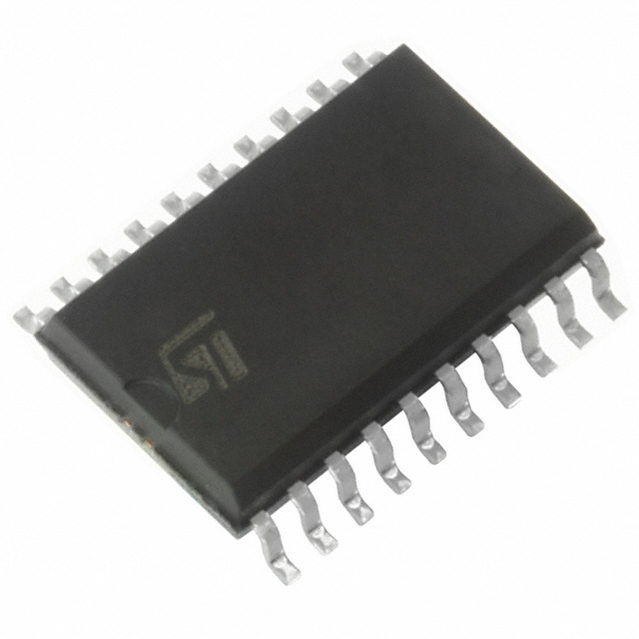

L6911E图片1
L6911E图片2
L6911E图片3
L6911E图片4
L6911E概述

采用同步整流5位可编程降压控制器 5-Bit programmable step down controller with synchronous rectification

Description

The device is a power supply controller specifically designed to provide a high performance DC/DC conversion for high current

microprocessors. A precise 5 bit digital to analog converter DAC allows to adjust the output voltage from 1.050 to 1.825 with 25mV binary steps.

Features

■ Operating supply IC voltage from 5V to 12V buses

■ Up to 1.3A gate current capability

■ TTL-compatible 5 bit programmable output compliant with VRM 8.5 : 1.050V to 1.825V with 0.025V binary steps

■ Voltage mode PWM control

■ Excellent output accuracy: ±1% over line and temperature variations

■ Very fast load transient response: from 0% to 100% Duty Cycle

■ Power good output voltage

■ Overvoltage protection and monitor

■ Overcurrent protection realized using the upper MOSFET"s RdsON

■ 200kHz internal oscillator

■ Oscillator externally adjustable from 50kHz to 1MHz

■ Soft start and inhibit functions

Applications

■ Power supply for advanced microprocessor core

■ Distributed power supply

L6911E中文资料参数规格
技术参数

输出接口数 1

输出电压 1.825 V

输出电流 1.3 A

开关频率 200 kHz

最大占空比 100 %

工作温度Max 125 ℃

工作温度Min 0 ℃

输入电压 5V ~ 12V

封装参数

安装方式 Surface Mount

封装 SOIC-20

外形尺寸

封装 SOIC-20

物理参数

工作温度 0℃ ~ 125℃ TJ

其他

产品生命周期 Obsolete

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买L6911E
型号: L6911E
描述:采用同步整流5位可编程降压控制器 5-Bit programmable step down controller with synchronous rectification
替代型号L6911E
型号/品牌 代替类型 替代型号对比

L6911E

ST Microelectronics 意法半导体

当前型号

当前型号

E-L6911E

意法半导体

完全替代

L6911E和E-L6911E的区别

L6911ETR

意法半导体

功能相似

L6911E和L6911ETR的区别
