Vishay### 印刷电路板安装单列直插式、双列直插式和表面安装### 印刷电路板安装 SIL 和 DIL所有这些继电器均含 -30°C 到 +80°C 的工作温度范围
SSR Output Type, 1.18 V Typ. Forward Voltage, Solid State Relays
* Current limit protection
* High surge capability
* Clean bounce free switching
* Low power consumption
* High reliability monolithic receptor
* SMD lead available on tape and reel
* Equivalent to CPC1035N
* Lead-free component
* Component in accordance to RoHS 2

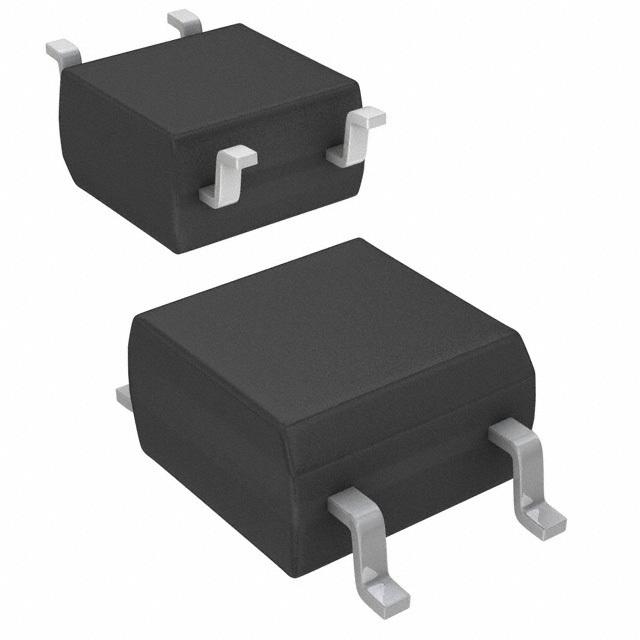

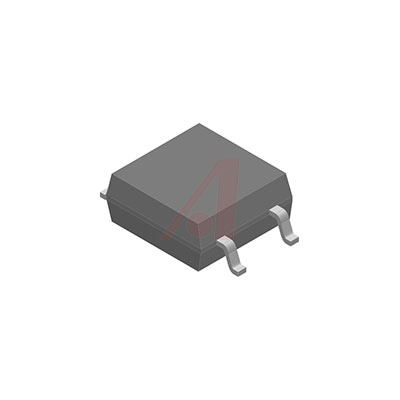

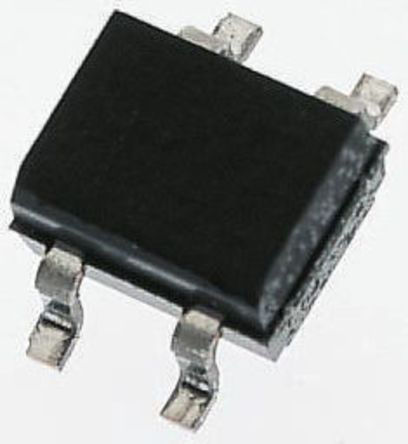

The 4 Pin SOP is robust, ideal for telecom and ground fault applications. It is a SPST normally open switch 1 Form A that replaces electromechanical relays in many applications. It is constructed using a GaAs LED for actuation control and an integrated monolithic die for the switch output.
额定电流 0.25 A
电容 1.1 pF
触点类型 SPST-NO
负载电流 120 mA
正向电压 1.18 V
输入电流 50 mA
耗散功率 600 mW
正向电流 50 mA
输入电压Max 1.45 V
输出电压Max 350 V
输出电流Max 0.12 A
输入电流Min 50 mA
负载电流Max 0.12 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 550 mW
额定电压 350 V
输入电压 1.18 VDC
安装方式 Surface Mount
引脚数 4
封装 SOP-4
长度 4.67 mm
宽度 4.67 mm
高度 2.33 mm
封装 SOP-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LH1546AEF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
LH1546AEFT2 威世 | 完全替代 | LH1546AEF和LH1546AEFT2的区别 |
LH1546AEFTR 威世 | 类似代替 | LH1546AEF和LH1546AEFTR的区别 |
