Vishay### 印刷电路板安装单列直插式、双列直插式和表面安装### 印刷电路板安装 SIL 和 DIL所有这些继电器均含 -30°C 到 +80°C 的工作温度范围

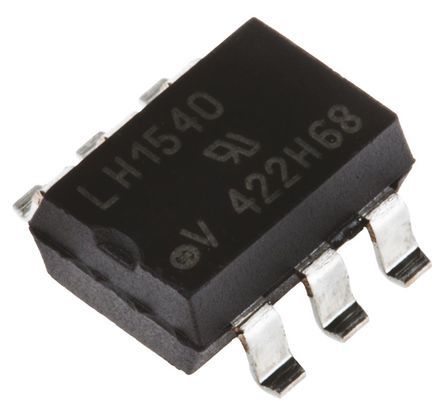

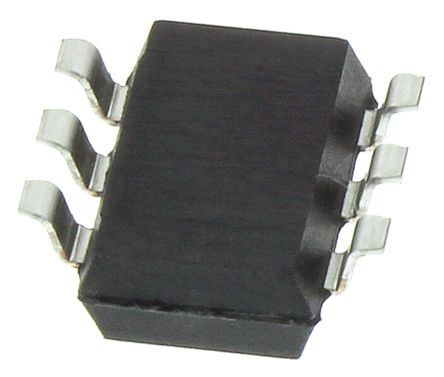

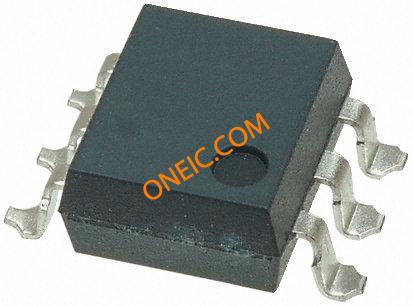

The is a Solid State Relay with SPST-NO contact and surface-mount terminals. This 1-form-A relay is constructed using a GaAIAs LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a high voltage dielectrically isolated technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches. It employs current-limiting circuitry which meets FCC 68.302 and other regulatory voltage surge requirements when overvoltage protection is provided.
- .
- Current limit protection
- .
- High surge capability
- .
- Clean bounce-free switching
- .
- Low power consumption
- .
- 550mW Power dissipation
- .
- 2ms Turn-on/off maximum time
- .
- -40 to 85°C Ambient temperature range
输出电流 120 mA
触点类型 SPST-NO
负载电流 120 mA
输入电流 50 mA
耗散功率 550 mW
电阻 20.0 Ω
隔离电压 5.3 kV
正向电流 1 mA
输入电压Max 1.45 V
输入电压Min 1.15 V
输出电压Max 350 V
输出电流Max 0.12 A
输入电流Min 50 mA
负载电流Max 0.12 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 550 mW
输入电压 1.45 V
安装方式 Surface Mount
引脚数 6
封装 DIP-6
长度 8.7 mm
宽度 6.5 mm
高度 3.81 mm
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Sensing & Instrumentation, Automation & Process Control, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LH1540AABTR Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
LH1540AAB 威世 | 类似代替 | LH1540AABTR和LH1540AAB的区别 |
