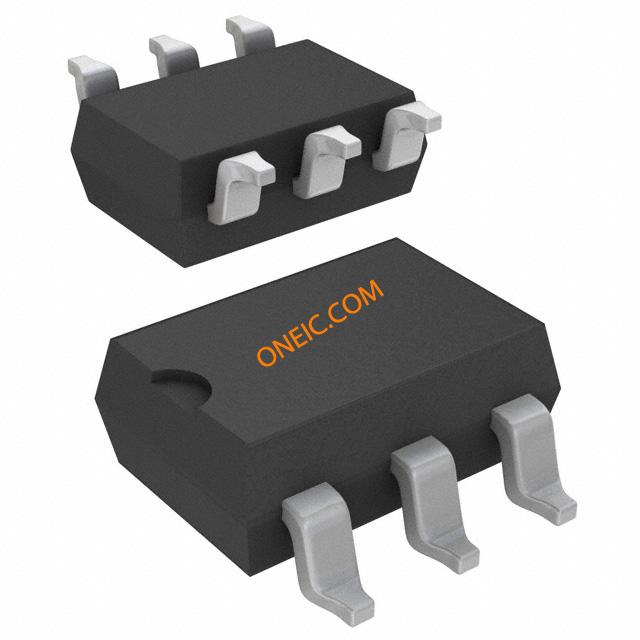

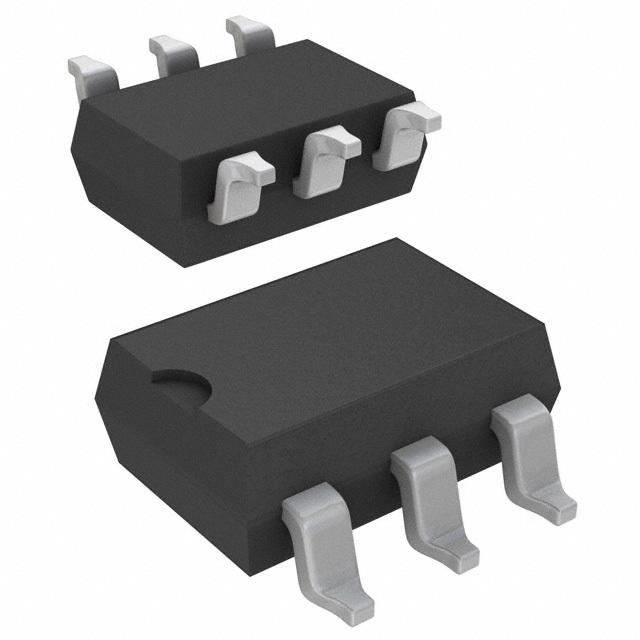

形式1 Form A固体继电器 1 Form A Solid State Relay
Description
Vishay Solid State Relays SSRs are miniature, optically- coupled relays with high-voltage MOSFET outputs. The LH1518 relays are capable of switching AC or DC loads from as little as nanovolts to hundreds of volts.
Features
• Isolation Test Voltage 5300 VRMS
• Current-limit Protection
• High-reliability Monolithic Detector
• Low Power Consumption
• Clean, Bounce-free Switching
• High Surge Capability
• Surface Mountable
• Lead-free component
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
触点类型 SPST-NO
负载电流 300 mA
输入电流 50 mA
隔离电压 5.3 kV
正向电流 10 mA
输入电压Max 1.45 V
输入电压Min 1.15 V
输出电压Max 250 V
输出电流Max 0.3 A
输入电流Min 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 1.26 VDC
安装方式 Surface Mount
引脚数 6
封装 SMD-6
长度 8.71 mm
宽度 6.5 mm
高度 3.81 mm
封装 SMD-6
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
