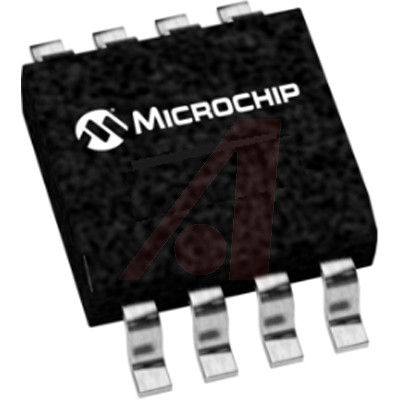

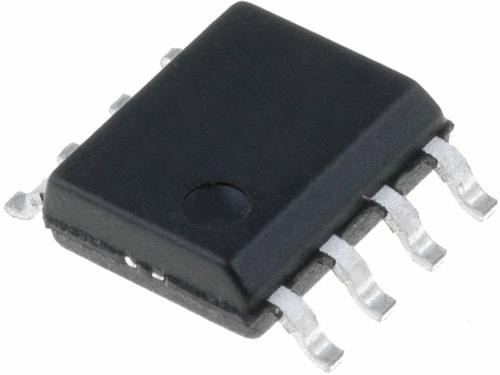

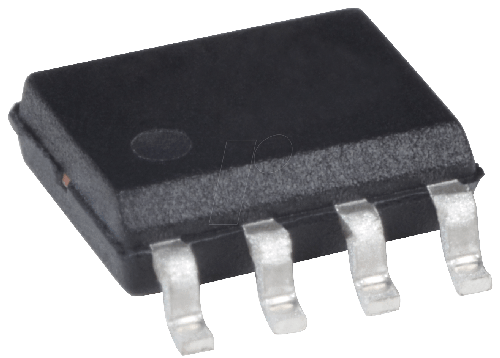

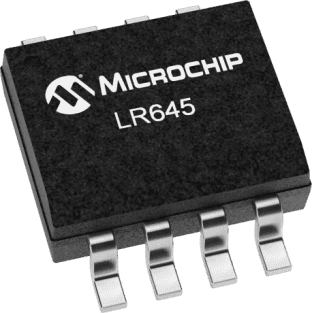

MICROCHIP LR645LG-G 芯片, 线性稳压器, 0.003A, 8V-12V, NSOIC-8
PMIC - 稳压器 - 线性 正 可调式 1 输出 3mA 8-SOIC
立创商城:
LR645LG-G
得捷:
IC REG LINEAR POS ADJ 3MA 8SOIC
e络盟:
LINEAR VOLTAGE REGULATOR, 0.003A, 8V-12V
艾睿:
This standard LR645LG-G linear regulator developed by Microchip Technology keeps the power stable! This device has a maximum power dissipation of 310 mW. This voltage regulation device&s;s single output can produce a current up to 0.03Typ A. Using the part will provide the power your application needs by requiring a voltage only of 15 V and not exceeding a voltage of 450 V. With an adjustable output that has a voltage of 8 to 12 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 400mV and line regulation of 200mV. Its maximum power dissipation is 310 mW. This voltage regulation device has an operating temperature range of -55 °C to 150 °C. Its polarity is positive.
Allied Electronics:
8 SOIC 3.90mm.150in T/RFIXED/ADJUSTABLE HIGH INPUT VOLTAGE REGULATOR
安富利:
Standard Regulator Pos 8V to 12V 0.03A 8-Pin SOIC N
富昌:
LR645 Series 12 V 3 mA High Input Voltage SMPS Start-up/Linear Regulator-SOIC-8
Chip1Stop:
Standard Regulator Pos 8V to 12V 0.03A 8-Pin SOIC N
TME:
Voltage regulator; linear, adjustable; 8÷12V; 3mA; SO8; SMD
Verical:
Standard Regulator Pos 8V to 12V 0.03A 8-Pin SOIC N T/R
Newark:
# MICROCHIP LR645LG-G Linear Voltage Regulator, Adjustable, 15V to 450V input, 8V to 12V/3 mA out, NSOIC-8
工作电压 15V ~ 450V
输出接口数 1
输出电压 8V ~ 12V
输出电流 3 mA
针脚数 8
耗散功率 0.31 W
输入电压Max 450 V
输入电压Min 15 V
输出电压Max 12 V
输出电压Min 8 V
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 310 mW
输入电压 15V ~ 450V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -55℃ ~ 155℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 工业, Audio, Power Management, Industrial, 音频, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LR645LG-G Microchip 微芯 | 当前型号 | 当前型号 |
LR645LG 微芯 | 功能相似 | LR645LG-G和LR645LG的区别 |
