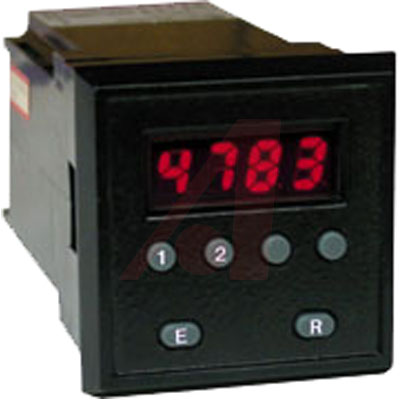

LIBT2E00 - Red Lion Controls Libra Series - Dual Preset LED Timer, 115V
The Libra Series of presettable timers is an economical and reliable solution to one or two preset timing requirements. The LIBT1 and LIBT1E are the single preset timer versions and the LIBT2 and LIBT2E are the dual preset timer versions. All four units have a solid-state output and a form C relay output for each preset. These units feature a full complement of control inputs, programmable timed output values, non-volatile memory and many other features which will satisfy most any single or dual preset timer requirement.
* ONE OR TWO PRESET VERSIONS
* 11 SELECTABLE TIME RANGES
* 0.5" 12.7 mm HIGH LIQUID CRYSTAL DISPLAY OR 0.4" 10.2 mm HIGH LED DISPLAY
* SOLID-STATE CURRENT SINK OUTPUTS
* FORM C RELAY OUTPUTS
* PROGRAMMABLE TIMED OUTPUT 0.01 sec to 99.99 sec.
* SIMPLE FRONT PANEL FOR PROGRAMMING EASE
* MEETS DIN PANEL MOUNT SPECIFICATIONS
* REMOTE RESET CAPABILITY
* INSTANTANEOUS AND DELAYED CONTACTS
* NON-VOLATILE MEMORY E2PROM
* SEALED FRONT PANEL CONSTRUCTION NEMA 4/IP65
* ABILITY TO LOCK OUT FRONT PANEL FUNCTIONS
* FRONT PANEL RESET ENABLE/DISABLE
