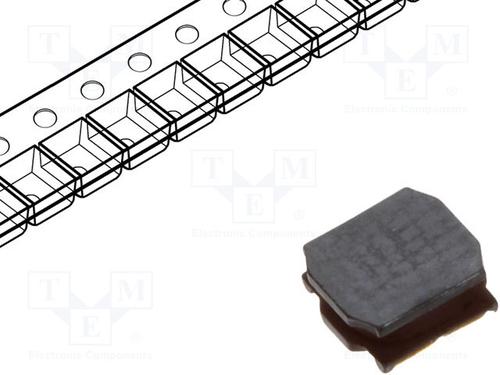

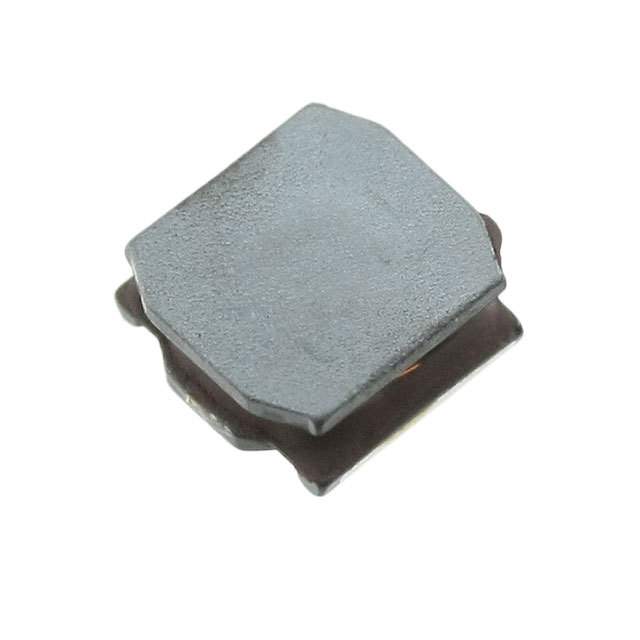

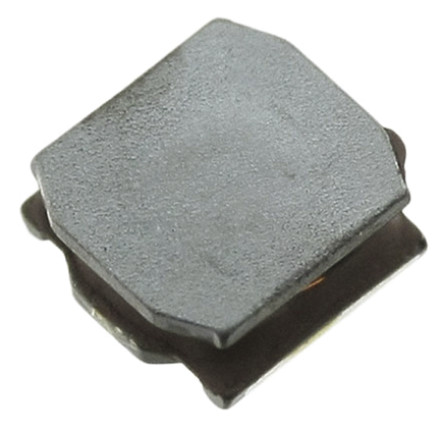

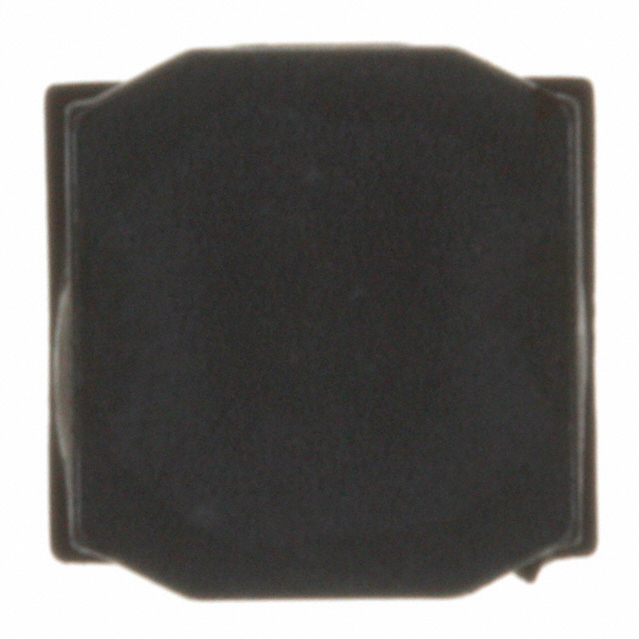

LQH44PN220MP0L

MURATA  LQH44PN220MP0L  表面贴装高频电感器, LQH44P_P0系列, 22 µH, ± 20%, 1515, 17 MHz, 0.37 ohm

Murata 1515 LQH44P_P0 系列磁性屏蔽线绕扼流圈

LQH44P 系列微型屏蔽器，具有低直流电阻、高电流容量和高阻抗特性。 LQH44P 系列适合在直流电源电路用作电感器或扼流圈。

得捷:
FIXED IND 22UH 790MA 444MOHM SMD

欧时:
Murata LQH44P_P0 系列 屏蔽 22 μH 绕线贴片电感器 LQH44PN220MP0L, ±20%容差, 800mA Idc

立创商城:
22uH ±20% 800mA 370mΩ

贸泽:
Fixed Inductors 0.79A 22uH

e络盟:
高频电感器, 22 µH, LQH44P_P0系列, 800 mA, 1515, 绕线, 0.37 ohm

艾睿:
This power chip LQH44PN220MP0L surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 790m A with a maximum resistance of 444m Ohm. It has an inductance of 22u H. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 17M Hz. This product is 4.2 mm long, 1.8 mm tall and 4.2 mm deep. This device is made with wirewound technology. It has a tolerance of 20%.

安富利:
Ind Power Chip Shielded Wirewound 22uH 20% 100KHz Ferrite 790mA 1515 Embossed T/R

Chip1Stop:
Inductor Power Chip Shielded Wirewound 22uH 20% 1MHz Ferrite 790mA 444mOhm DCR 1515 Embossed T/R

TME:
Inductor: wire; SMD; 1515; 22uH; 790mA; 0.37Ω; 4x4x1.65mm; ±20%

Verical:
Inductor Power Chip Shielded Wirewound 22uH 20% 1MHz Ferrite 0.79A 0.444Ohm DCR 1515 T/R

Newark:
# MURATA  LQH44PN220MP0L  Surface Mount High Frequency Inductor, LQH44P_P0 Series, 22 µH, 800 mA, 1515, Wirewound, 0.37 ohm

儒卓力:
**LQH44P 22uH 790mA 20% WWT **

Win Source:
22μH Shielded Wirewound Inductor 790mA 444 mOhm Max Nonstandard
