LNK304DG-TL

LNK304DG-TL 编带

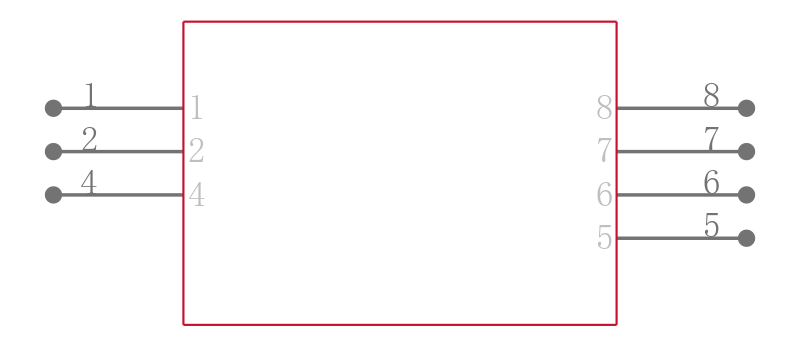

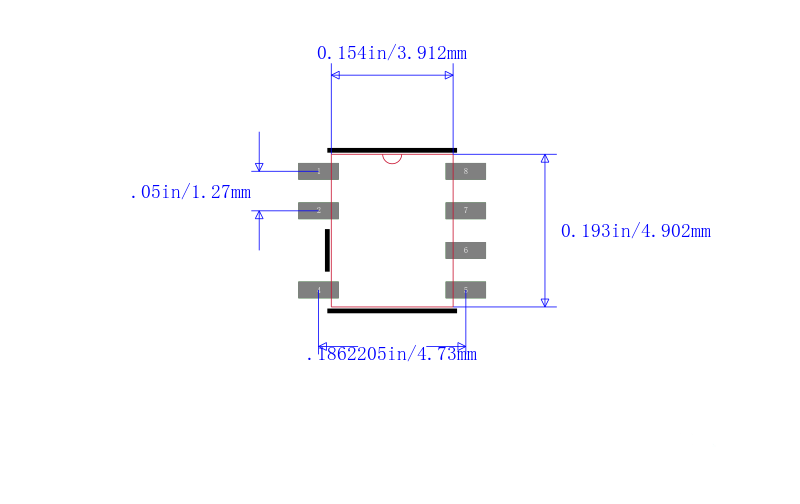

LinkSwitch-TN is specifically designed to replace all linear and capacitor-fed cap dropper non-isolated power supplies in the under 360 mA output current range at equal system cost while offering much higher performance and energy efficiency. LinkSwitch-TN devices integrate a 700 V power MOSFET, oscillator, simple On/Off control scheme, a high-voltage switched current source, frequency jittering, cycle-by-cycle current limit Figure 1. Typical Buck Converter Application See Application Examples Section for Other Circuit Configurations. and thermal shutdown circuitry onto a monolithic IC. The start-up and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias supply and associated circuitry in buck or flyback converters.

.

Lowest cost and component count buck converter solution

.

Fully integrated auto-restart for short-circuit and open loop fault protection - saves external component costs

.

66kHz operation with accurate current limit - allows low cost off-the-shelf 1 mH inductor for up to 120 mA output current

.

High breakdown voltage of 700 V provides excellent input surge withstand

.

Supports buck, buck-boost and flyback topologies

.

System level thermal overload, output short-circuit and open control loop protection

.

Excellent line and load regulation even with typical configuration

.

High bandwidth provides fast turn-on with no overshoot

.

Current limit operation rejects line ripple

.

Universal input voltage range 85VAC to 265VAC

.

Built-in current limit and hysteretic thermal protection
