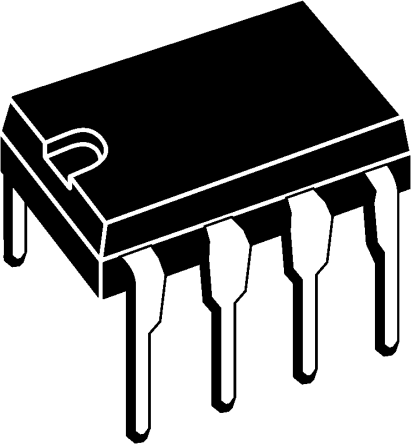

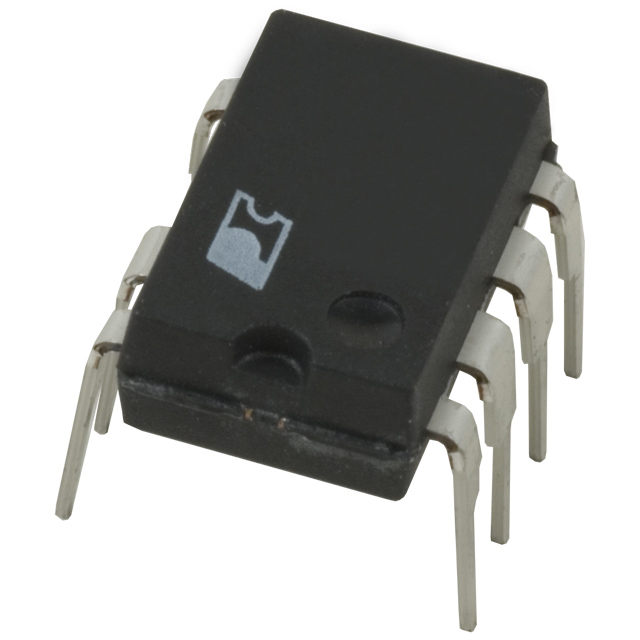

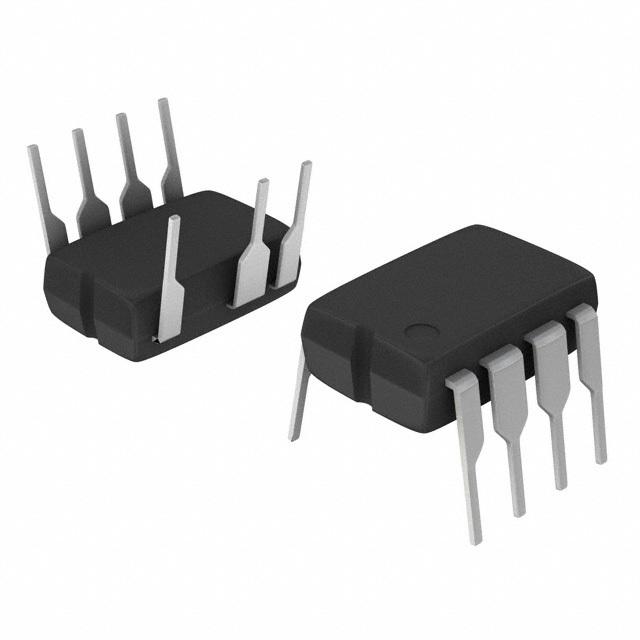

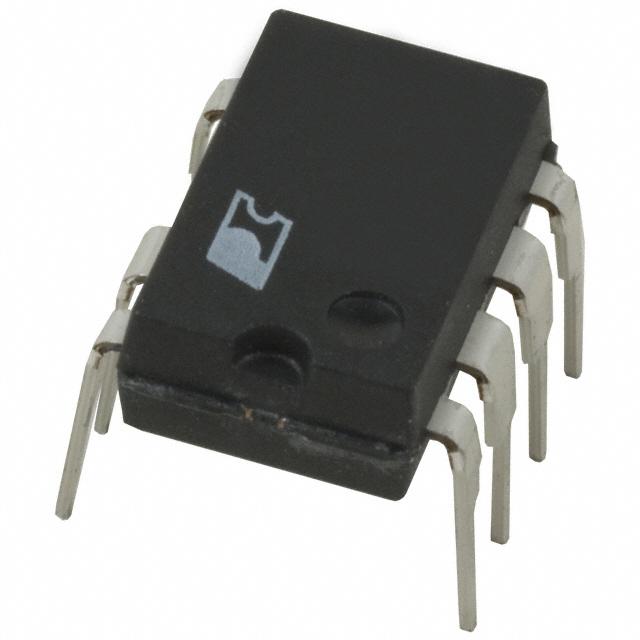

LNK362PN

POWER INTEGRATIONS  LNK362PN  芯片, 交流/直流转换器, 反激式, DIP-7

LinkSwitch-XT，

LinkSwitch-XT 系列提供低功率交流-直流功率转换。

700V 内部 MOSFET 额定值

自供电

开/关控制

滞后过温保护

功率限制

频率波动可减少 EMI

EcoSmart® 待机/空载功耗低

LinkSwitch-XT incorporates a 700 V power MOSFET, oscillator, simple ON/OFF control scheme, a high-voltage switched current source, frequency jittering, cycle-by-cycle current limit and thermal shutdown circuitry onto a monolithic IC. The startup and operating power are derived directly from the DRAIN pin, eliminating the need for a bias winding and associated circuitry.

Fully integrated auto-restart for short circuit and open loop protection

Self-biased supply

Frequency jittering greatly reduces EMI

Meets HV creepage requirements between DRAIN and all other pins both on the PCB and at the package

Lowest component count switcher solution Accurate hysteretic thermal shutdown protection

Universal input range allows worldwide operation

Simple ON/OFF control, no loop compensation needed

Auto-restart reduces delivered power by 95% during short circuit and open loop fault conditions
