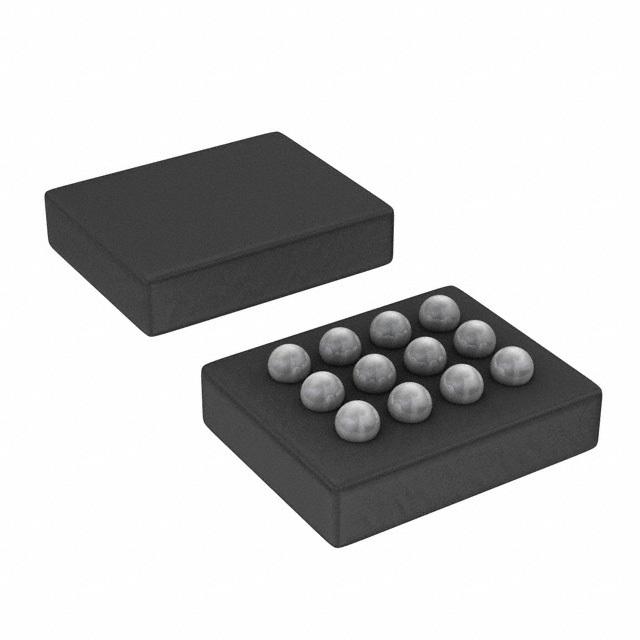

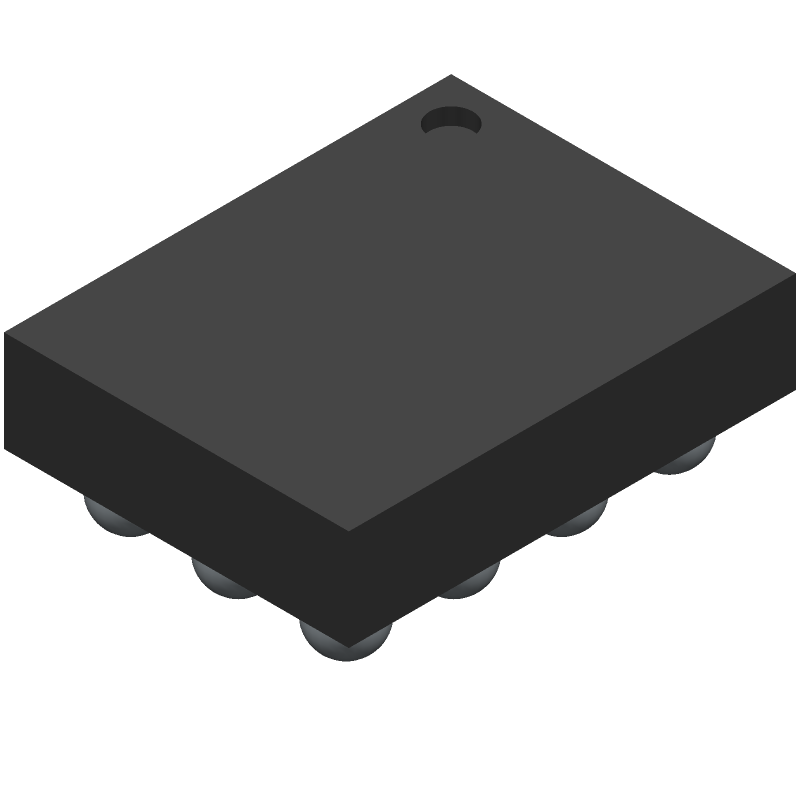

LED照明驱动器 LM3648 Synchronous Boost LED Flash Driver with 1.5-A High-Side Current Source 12-DSBGA -40 to 85
The LM3648 is an LED flash driver that provides a high level of adjustability within a small solution size. The LM3648 utilizes a 2-MHz or 4-MHz fixed-frequency synchronous boost converter to provide power to the 1.5-A constant current LED source. An adaptive regulation method ensures the current source remains in regulation and maximizes efficiency.
Features of the LM3648 are controlled via an I2C-compatible interface. These features include: hardware flash and hardware torch pins STROBE and TORCH/TEMP, a TX interrupt, and an NTC thermistor monitor. The device offers 64 programmable currents in Flash and 128 levels in Movie Mode Torch condition.
The 2-MHz or 4-MHz switching frequency options, overvoltage protection OVP, and adjustable current limit allow for the use of tiny, low-profile inductors and 10-µF ceramic capacitors. The device operates over a –40°C to +85°C ambient temperature range.
