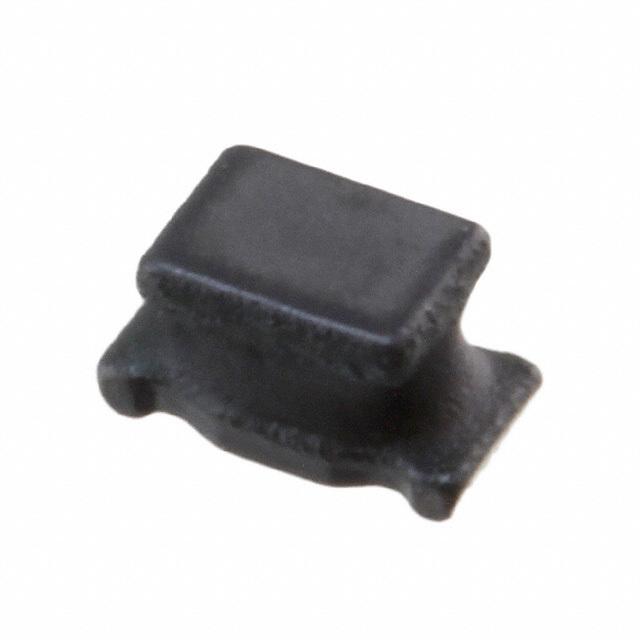

MURATA LQH31CN470K03L 表面贴装高频电感器, LQH31CN_03系列, 47 µH, ± 10%, 1206 [3216 公制], 10 MHz, 8 ohm
是一款绕线表面安装高频器/线圈, 1206外壳。绕线电感器设计为铜线螺旋缠绕在铁氧体磁芯上。绕线电感器适用于电源电路, 铜线涂有树脂。树脂涂层可提高产品的强度, 可在大电流和高电感条件下使用。该电感器支持10MHz最小自谐振频率, ±10%电感容差。
得捷:
FIXED IND 47UH 100MA 10.4OHM SMD
立创商城:
47uH ±10% 100mA 10.4Ω
欧时:
### Murata 1206 LQH31C 系列线绕扼流圈LQH31C 系列微型贴片电感器,具有低直流电阻、高电流容量和高阻抗特性。 LQH31C 系列适合用作电感器,用于在直流电源电路中实现扼流圈目的。 ### SMT 1206 电感器(扼流圈)
艾睿:
This power chip LQH31CN470K03L surface mount inductor from Murata is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep. It has an inductance of 47u H. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 10M Hz. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 10.4 Ohm. This device utilizes wirewound technology.
安富利:
Ind Power Chip Unshielded Wirewound 47uH 10% 1MHz Ferrite 100mA 1206 Embossed T/R
Chip1Stop:
Inductor Power Chip Unshielded Wirewound 47uH 10% 1MHz Ferrite 100mA 10.4Ohm DCR 1206 T/R
Verical:
Inductor Power Chip Unshielded Wirewound 47uH 10% 1MHz Ferrite 100mA 10.4Ohm DCR 1206 T/R
Newark:
# MURATA LQH31CN470K03L Surface Mount High Frequency Inductor, LQH31CN_03 Series, 47 µH, 100 mA, 1206 [3216 Metric]
儒卓力:
**LQH31CN 47uH 100mA 10% WWT **
Win Source:
FIXED IND 47UH 100MA 8 OHM SMD
额定电流 100 mA
容差 ±10 %
电感 47 µH
自谐频率 10 MHz
产品系列 LQH
电阻 8.00 Ω
共振频率 10.0 MHz
电感公差 ±10 %
测试频率 1 MHz
电阻DC) ≤10.4 Ω
额定电流DC 100 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 8 Ω
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 2 mm
封装公制 3216
封装 1206
重量 0.029 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
