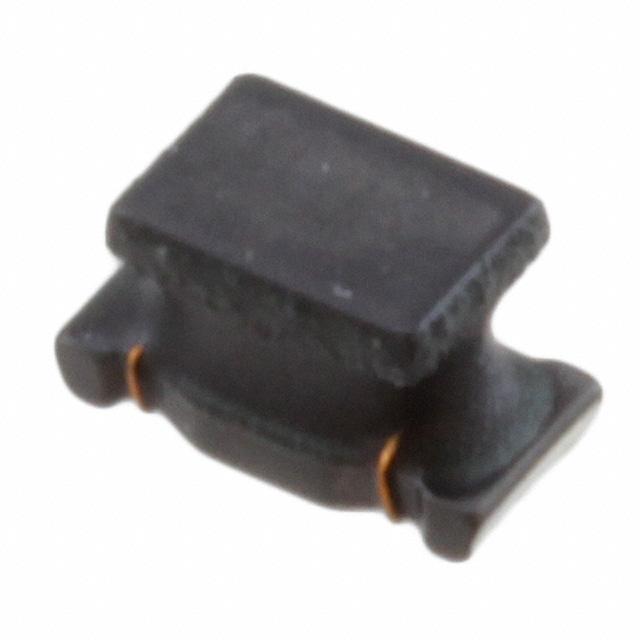

LQH31MN220K03L

MURATA  LQH31MN220K03L  表面贴装高频电感器, LQH31MN_03系列, 22 µH, ± 10%, 1206 [3216 公制], 14 MHz, 3.1 ohm

22µH Unshielded Wirewound Inductor 85mA 4.03Ohm Max 1206 3216 Metric

立创商城:
22uH ±10% 85mA 3.1Ω

得捷:
FIXED IND 22UH 85MA 4.03 OHM SMD

e络盟:
高频电感器, 22 µH, LQH31MN_03系列, 85 mA, 1206 [3216 公制], 绕线, 3.1 ohm

艾睿:
An ideal space-saving electronic component is this general purpose chip LQH31MN220K03L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 22u H. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 14M Hz. It has a tolerance of 10%. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 85m A with a maximum resistance of 4.03 Ohm. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep.

安富利:
Ind General Purpose Chip Unshielded Wirewound 22uH 10% 1MHz 40Q-Factor Ferrite 85mA 1206 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 22uH 10% 1MHz 40Q-Factor Ferrite 85mA 4.03Ohm DCR 1206 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 22uH 10% 1MHz 40Q-Factor Ferrite 0.085A 4.03Ohm DCR 1206 T/R

Newark:
# MURATA  LQH31MN220K03L  Surface Mount High Frequency Inductor, LQH31MN_03 Series, 22 µH, 85 mA, 1206 [3216 Metric]

儒卓力:
**LQH31MN 22uH 85mA 10% **
