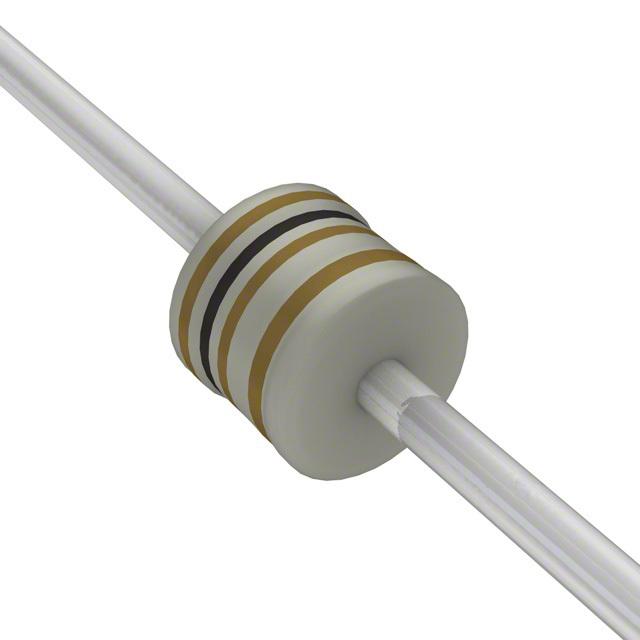

TE CONNECTIVITY LR0204F100R 通孔电阻器, LR系列, 100 ohm, 250 mW, ± 1%, 200 V, 轴向引线
The is a 100R Metal Film Fixed Resistor with 1% tolerance and 0.25W power rating. The resistive element comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element. Metal end caps are force fitted to the element prior to spiralling to value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin is followed by three coats of epoxy resin.
额定电压DC 200 V
容差 ±1 %
额定功率 250 mW
电阻 100 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Through Hole
封装 Axial Leaded
长度 3.2 mm
直径 Φ2.00mm
脚长度 28 mm
封装 Axial Leaded
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Bulk
最小包装 4000
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LR0204F100R TE Connectivity 泰科 | 当前型号 | 当前型号 |
CMF50100R00FHEB 威世 | 功能相似 | LR0204F100R和CMF50100R00FHEB的区别 |
