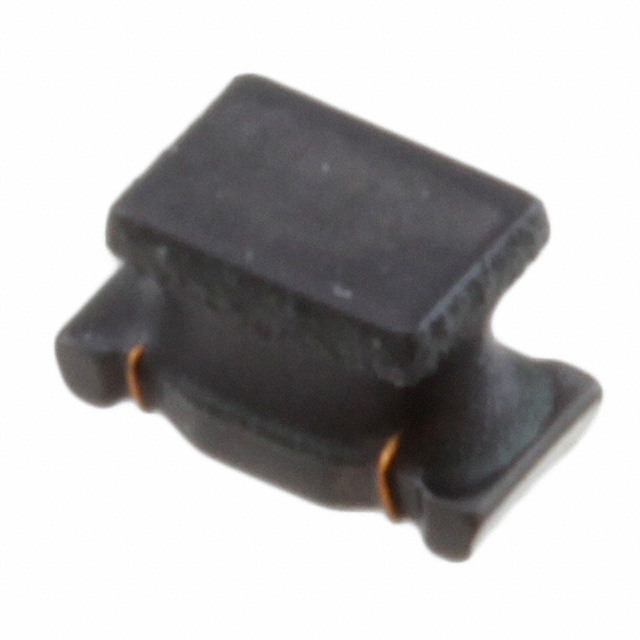

MURATA LQH31MN150K03L 表面贴装高频电感器, LQH31MN_03系列, 15 µH, ± 10%, 1206 [3216 公制], 16 MHz, 3 ohm

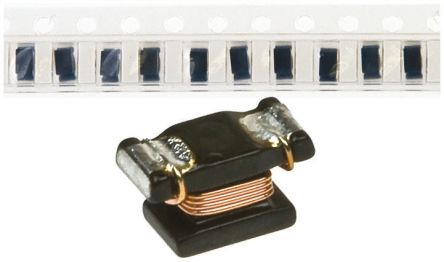

Murata 1206 LQH31MN 系列线绕器
广泛的电感范围
高频率时的高 Q 值和低直流阻抗
小型 3.2x1.6x1.8mm 和紧密间距安装
低直流电阻和高电流
流动和回流耐热焊接
欧时:
### Murata 1206 LQH31MN 系列线绕电感器广泛的电感范围 高频率时的高 Q 值和低直流阻抗 小型 3.2x1.6x1.8mm 和紧密间距安装 低直流电阻和高电流 流动和回流耐热焊接 ### SMT 1206 电感器(扼流圈)
立创商城:
15uH ±10% 3Ω
得捷:
FIXED IND 15UH 90MA 3.9 OHM SMD
e络盟:
高频电感器, 15 µH, LQH31MN_03系列, 90 mA, 1206 [3216 公制], 绕线, 3 ohm
艾睿:
An ideal space-saving electronic component is this general purpose chip LQH31MN150K03L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep. This SMD inductor has a maximum DC current of 90m A with a maximum resistance of 3.9 Ohm. It has an inductance of 15u H. This device utilizes wirewound technology. It has a tolerance of 10%. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 16M Hz.
安富利:
Ind General Purpose Chip Unshielded Wirewound 15uH 10% 1MHz 35Q-Factor Ferrite 90mA 1206 Embossed T/R
Verical:
Inductor General Purpose Chip Unshielded Wirewound 15uH 10% 1MHz 35Q-Factor Ferrite 0.09A 3.9Ohm DCR 1206 T/R
Newark:
# MURATA LQH31MN150K03L Surface Mount High Frequency Inductor, LQH31MN_03 Series, 15 µH, 90 mA, 1206 [3216 Metric]
儒卓力:
**LQH31MN 15uH 90mA 10% WWT **
额定电流 90 mA
容差 ±10 %
电感 15 µH
自谐频率 16 MHz
Q值 35.0
产品系列 LQH
电阻 3.00 Ω
共振频率 16.0 MHz
电感公差 ±10 %
测试频率 1 MHz
电阻DC) ≤3.9 Ω
额定电流DC 90 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 3 Ω
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.8 mm
封装公制 3216
封装 1206
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
